美國蒙那多頻閃儀上海峰志儀器有限公司現貨供應，主要型號有：

Nova-Strobe系列頻閃儀：
BBL型 LED光源 精度0.01FPM 30-500,000FPM
DBL型 LED光源 精度0.01FPM 30-500,000FPM
PBL型 LED光源 精度0.01FPM 30-500,000FPM 轉速 相位 延遲
bax型 數字液晶顯示, 電源驅動 30--10,000FPM
bbx型 數字液晶顯示, 電池驅動 30--10,000FPM
dax型 數字液晶顯示, 電源驅動 30--20,000FPM
dbx型 數字液晶顯示, 電池驅動 30--20,000FPM
頻閃儀備用燈管L-1903
Phaser-Strobe pbx型頻閃儀： 帶時間及角度延遲 30--50,000FPM
Palm Strobe psx型 超小型頻閃儀： 可拆卸充電電池 100-12,500FPM

美國蒙那多頻閃儀的充電電池更換方法

Internal Battery Pack for Nova-Strobe "X" xenon and "L" LED Series Strobes：

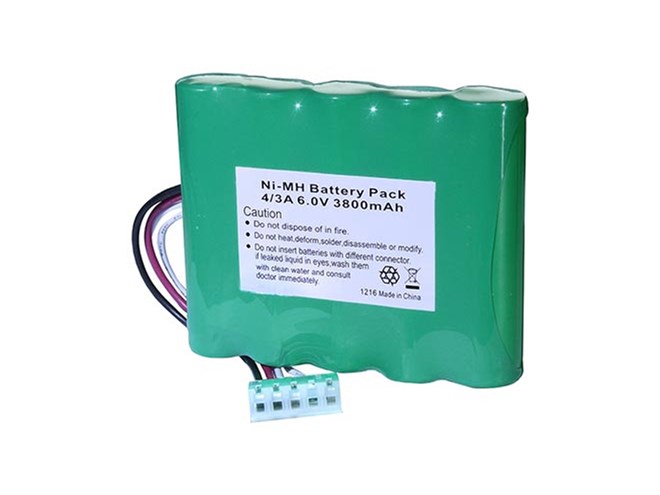

NiMH可充電鎳氫電池組適用于以下Nova-Strobe型號：BBX，DBX，PBX，VBX，BBL，DBL和PBL
Rechargeable NiMH Battery Pack for the following Nova-Strobe models: BBX, DBX, PBX, VBX, BBL, DBL, and PBL.

美國蒙那多（美國monarch instrument）頻閃儀充電電池適用的型號：頻閃儀BBX、Nova頻閃儀DBX、相位器頻閃儀PBX、振動頻閃儀VBX

Nova-Strobe Battery Replacement
for models: Nova-Strobe BBX, Nova-Strobe DBX, and Phaser Strobe PBX, Vibration Strobe VBX
Taking the unit apart is the easy part . . .

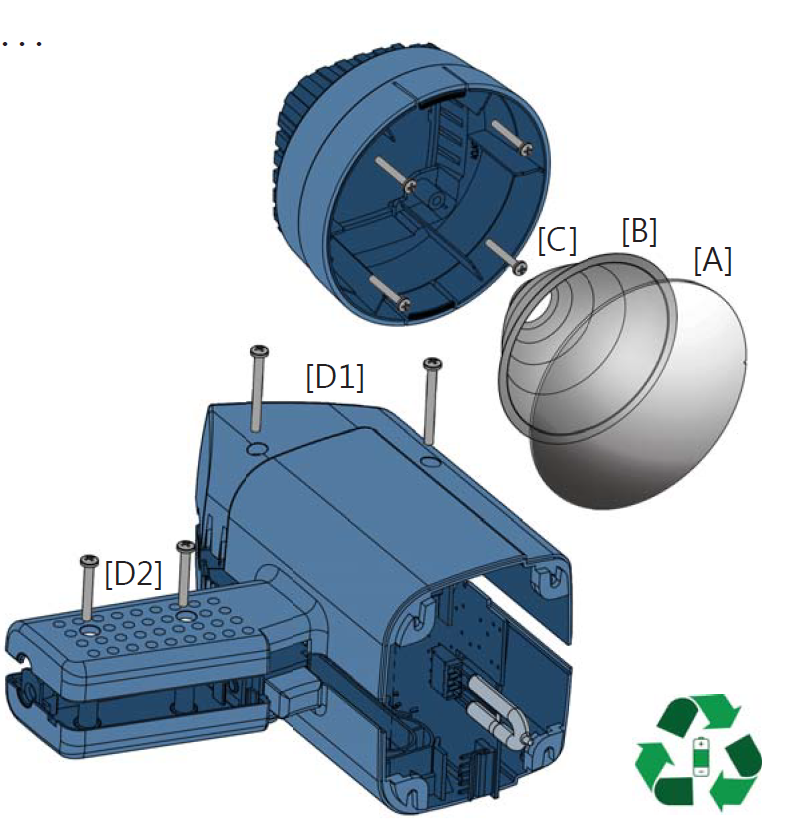

To do this, [A] remove the lens by separating the two tabs that hold it in place. Put a piece of tape on the side of the lens that faces out so it can be installed correctly. Slide
the refl ector [B] and lamp out as detailed in the Lamp Replacement section of your manual. This will expose four screws [C] that must be removed so the refl ector housing
can be removed from the main body.

There are then four additional screws [D1] & [D2] in the case halves opposite the input and output jacks that must be removed.
The case halves can now be separated,exposing the batteries. They should be sent to a recycling center or returned to Monarch for disposal.

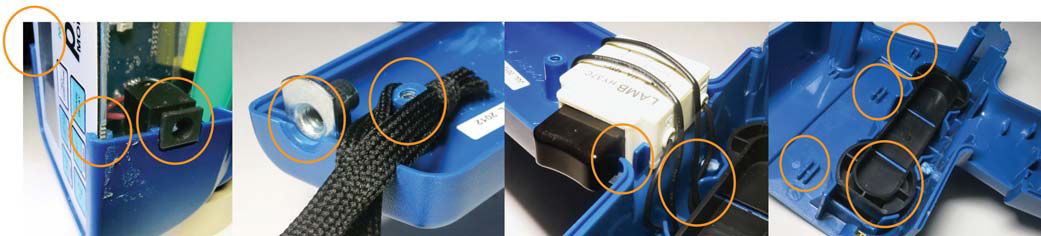

Before you open the case, know that during the reassembly there are multiple points thatneed to align correctly to close the case securely.
Some of them include:
? Display board sits in groove
? DC Connector spans both case halves
? Mounting T-nut sits in slot as shown
? Lanyard knot surrounds screw standoff and protrudes through the notch in the case
? Trigger sits in case brackets with wires tucked out of the way
? PCB aligns in a retaining groove
? Battery holders (2) nests in brackets, there is a right and wrong way to insert them

 Replace the battery

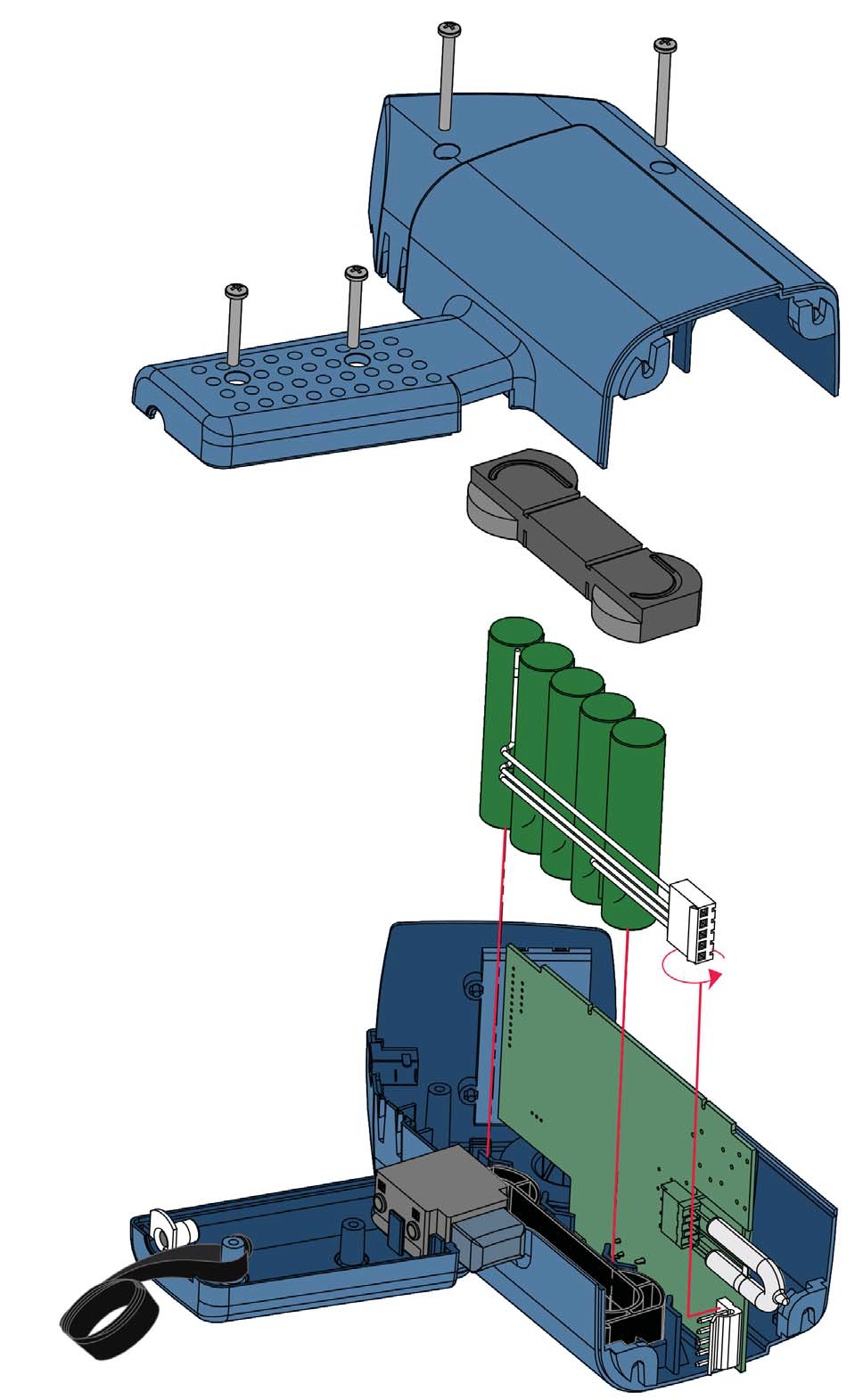

Ensure that the replacement battery is plugged into the PCB fi rmly. Carefully place the right half (1055-4241-111) onto the left (1055-4242-111).
Align the display board [F], battery [G], and main PCB [H] into the slots provided in the case. Align the display and battery fi rst, then from the front of the unit, guide the PC Board into the retaining slots with a wooden stick. Ensure the trigger wires [I] and DC Jack [J] are properly in place.
Fasten both halves using two 2” self tapping screws [D] (1053-3328-001) through the body of the right half. Do not over tighten screws.
Gently pry apart case halves at the base of the handle and insert tee nut [K] (1053-0270-001) into slot in left handle.
Slip knotted end of wrist strap [L] (3051-2000-015) over left half handle standoff and through slot provided.
Carefully press case handles together, ensuring the wrist strap fi ts into the notch provided and no wires are pinched between the case halves.
Re-attach the refl ector housing.
Do not over tighten screws [C], [D1], [D2].

上海峰志儀器有限公司現貨供應蒙拿多頻閃儀、頻閃儀燈泡、頻閃儀的充電電池，。

美國蒙那多便攜式頻閃儀

多年來，Monarch Instrument一直在制造手持式頻閃儀，以補充我們的固定式頻閃儀。新星-PRO ? 是一系列功能強大的便攜式目視檢查和速度測量工具。Monarch將我們的手持式LED頻閃儀的功能與全功能激光轉速表結合在一起，從而創建了一種緊湊，符合人體工程學，功能極其強大的二合一預測維護工具。NOVA-頻閃LED 家族堅固耐用的工業頻閃儀的提供用于執行停止運動診斷檢查和RPM的測量極其明亮，均勻的光輸出。另外，Monarch還提供Palm-Strobe X（手持式移相器設計，可單手操作以實現快速分?jǐn)?shù)RPM調整），以及VBX Vibration Strobe（振動式選通），其獨特設計旨在為多個數據收集器和FFT分析儀觸發的，瞬時同步加速度計。
在這里，您將找到適合任何應用的合適的頻閃儀。
Nova-Pro?100 LED頻閃儀/轉速表
Nova-Pro?300 LED頻閃儀/轉速表
Nova-Pro?500 LED頻閃儀/轉速表
Nova-Pro?紫外線LED頻閃儀/轉速表
PLS袖珍LED頻閃儀
Nova-Strobe BBL LED便攜式頻閃儀
Nova-Strobe DBL LED便攜式頻閃儀
Nova-Strobe PBL LED便攜式頻閃儀
Nova-Strobe BBX電池式頻閃儀
Nova-Strobe DBX數字便攜式電池供電的頻閃儀
Phaser-Strobe PBX數字便攜式頻閃儀
Nova-Strobe BAX交流頻閃儀
Nova-Strobe DAX數字便攜式交流供電頻閃儀
Palm Strobe x袖珍便攜式頻閃儀
VBX振動頻閃儀套件
