美國蒙那多BBX手握式頻閃儀
美國蒙那多(美國monarch instrument)原裝bbx手握式頻閃儀,便攜式設計，30-10000FPM的測量量程，數字液晶顯示，直接使用電池驅動，因此不受使用環境限制，可方便的攜帶到生產現場進行檢測，如機械制造、印刷、輕工、紡織、電力、醫藥、食品加工等行業。
手握式頻閃儀：蒙那多原裝進口，美國生產，進口品質。在國內轉速和頻閃儀測量方面具有非常高的使用率，上海峰志儀器有限公司為美國夢那多產品原裝代理，美國蒙那多原裝bbx手握式頻閃儀現貨銷售，我們是夢那多華東代理，專業頻閃儀經銷。同時還銷售有夢那多各型號頻閃儀燈泡、電池等配件，歡迎來電咨詢。
BBX手握式頻閃儀采用內部電池供電，一次充電可連續使用60分鐘。如果您不需要內置電池頻閃儀，可選擇型號bax，與bbx手握式頻閃儀其它功能外觀參數完全一致，bax手握式頻閃儀采用電源供電，價格比bbx頻閃儀更優惠。
美國蒙那多原裝bbx手握式頻閃儀技術參數
型號 ：Nova-Strobe bbx
測量范圍 ：30-10000FPM
精度 ：±1FPM
分辨率 ：1FPM
燈管壽命 ：5千萬次
閃能 ：140mJoule
平均功率 ：8 W
連續工作時間 ：6000FPM用60分鐘
電源 ：充電電池
重量 ：1.2kg
尺寸 ：229×93×92mm 反光面直徑：122mm
手柄長度：108mm

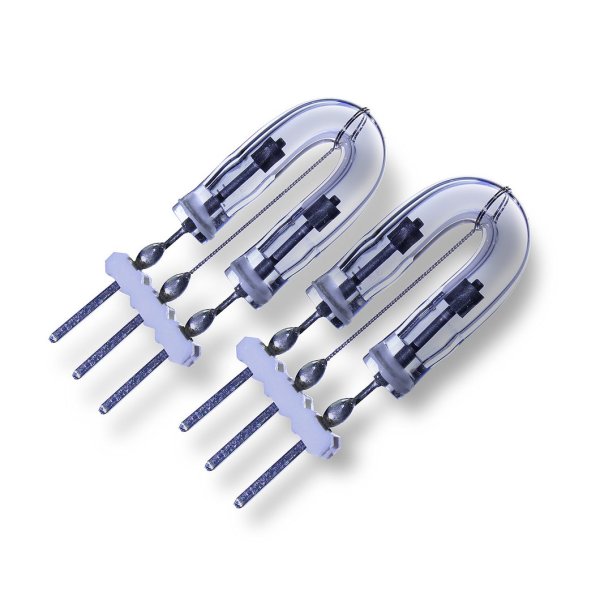

美國蒙拿多dbx/dax便攜式頻閃儀的更換燈管：
Monarch L-1903 Replacement Lamp

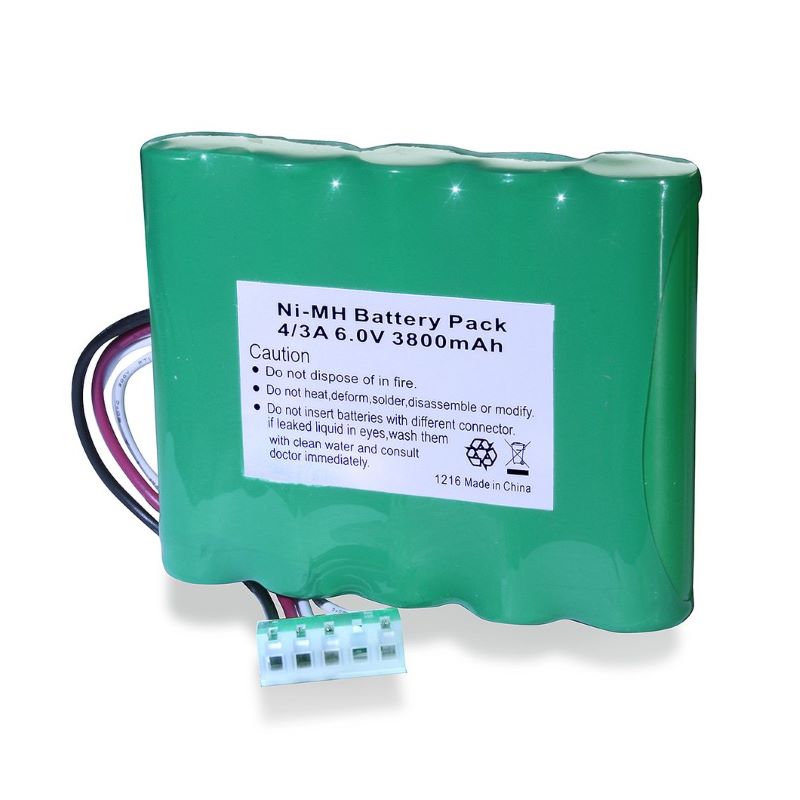

美國蒙拿多dbx/dax便攜式頻閃儀的可更換充電電池組：
美國蒙那多bbx手握式頻閃儀的英文介紹：

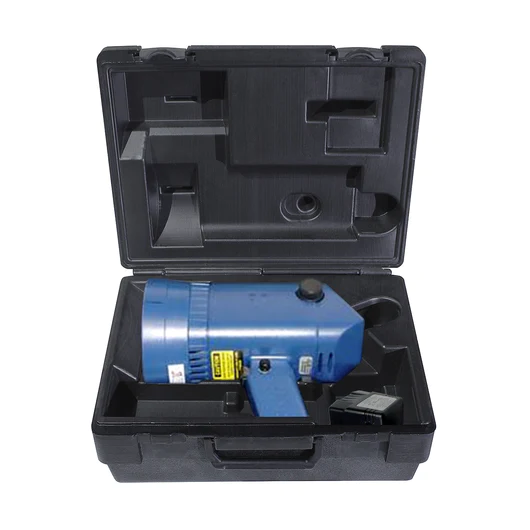

Nova-Strobe bbx Battery-Powered Stroboscope
Nova-Strobe bbx Battery-Powered Stroboscope,Monarch's most basic battery-powered xenon stroboscope... still a workhorse!
The bbx is simple to operate, just point and shoot. Lightweight and bright with flash rates to 10,000 Flashes Per Minute (FPM) these strobes are comfortable to hold and will operate continuously with no danger of overheating.
The bbx Battery-Powered Stroboscope weighs only 1.9 lbs. (0.86 kg) and will run continuously for 2 hours on a single charge. A slow charger is included; the recharge time is 4 hours.
To see the latest in portable stroboscope technology, take a look at the Nova-Pro 100!
FEATURES
Powerful light output (20% brighter than competitive models)
Lightweight for easy handling
Electronic Switching provides continuous cool operation
Tripod mounting bushing in the handle
Battery-powered
Cost-effective
SPECIFICATIONS*
| Range Flashes/Minute | 30-10,000 FPM/RPM |
| Display | LCD with 6 numeric 0.506 in. [12.85 mm] high digits and 5 alphanumeric 0.282 in. [7.17 mm] high digits |
| Accuracy/Resolution | ±1 LSD/1 FPM |
| Light Output | Average Power: 15.5 Watts typical > 4000 FPM Instantaneous (per flash): 230 mJoule typical to 4000 FPM |
| Knob Adjustment | Digital rotary switch with 36 detents per revolution; velocity-sensitive |
| Memory | Last setting before power down is remembered and restored on next power |
| Flash Tube & Life (typical) | High-power xenon - 100 million flashes typical |
| Operating Temperature | 32-104 °F [0-40 °C] May be operated for short time periods, slightly beyond the stated temperature range. |
| Input Power | AC powered: 115 V ac or 230 V ac, 35 VA (as ordered) |
| Operating Time (charged batteries) | 2 hours typical @ 1800 FPM |
| Dimensions (LxWxH) | Body: 9 in. x 3.66 in. x 3.56 in. [229 mm x 93 mm x 90 mm]; Reflector Housing: 4.8 in. [122 mm] diameter; Handle: 4.25 in. [108 mm] long |
| Power | Internal NiMH rechargeable batteries |
| Weight | 1.9 lbs. (0.86 kg) |
