便攜式激光轉速表LUYOR-925/ Laser tachometers
Laser tachometers LUYOR-925一款能夠遠距離、高精度、在線連續數天測量的激光轉速表！LUYOR-925是一款能夠定位與測量的多功能性相結合激光轉速表，能夠遠距離、高精度、非接觸測量旋轉設備的轉速，能夠輸出TTL信號傳送給各種數采設備。LUYOR-925是一款利用激光測量旋轉電機轉速的準確數字便攜式轉速表。
性能：
寬速度測量范圍：激光測量范圍為0-99999 r/min
激光可在于6米以內的安全、快速、非接觸式轉速測量。
數碼管顯示，即使昏暗環境也能輕松讀取數據。
與目標的角度范圍為±60°，適用各種測量環境。
充電電池供電，充滿電能夠連續工作一周。
標準BNC輸出接口，0-5V TTL信號輸出，能夠傳送給各種數采設備。
背部帶有1/4-20螺口，適配三腳架進行在線測量。

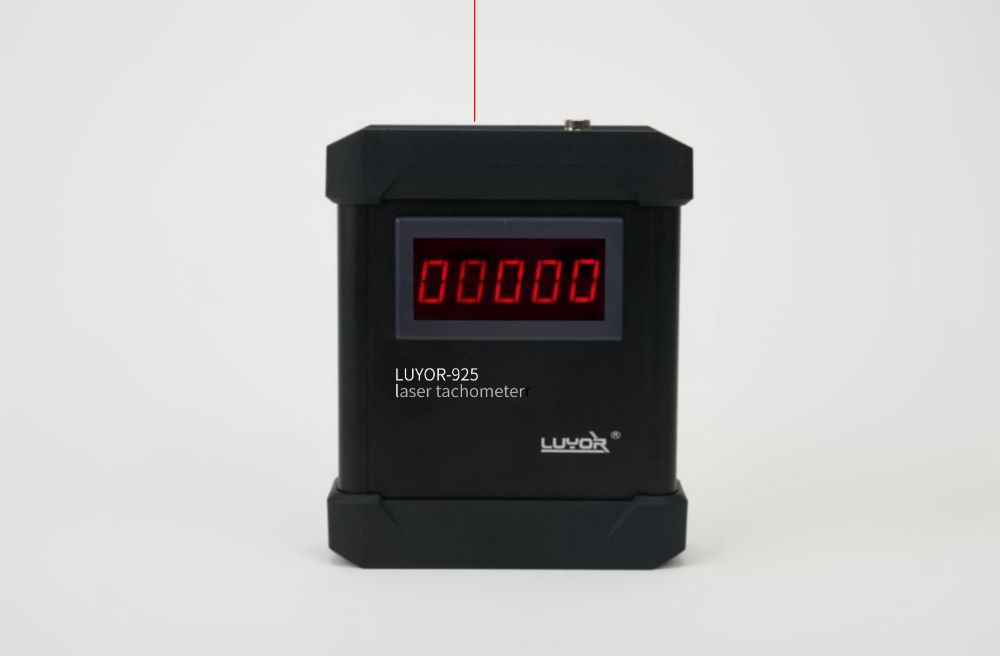

LUYOR-925 Digital laser tachometer
Pinpoint accuracy combined with measurement versatility
The LUYOR-925 is a fast and accurate tachometer utilizing laser measure rotational.
Wide speed measurement range: up to 99 999 r/min for laser measurement
Measurement modes include; rotational speed
Laser can be used for safe and quick, non-contact rotational speed measurements at distances up to 6m.
Digital tube display enables easy reading in almost all light conditions
Angular range of ±60° to target helps facilitate easy measuring
Compact design; one–hand operated instrument
Supplied in carrying case for protection and portability
TECHNICAL DATA
|
Designation |
LUYOR-925 |
|
顯示Display |
5 digit LCD backlit display |
|
顯示精度Displayed resolution |
1 r/min |
|
Measurement |
|
|
- Optical modes |
r/min |
|
- 采樣時間Sampling time |
0,5 seconds (over 120 r/min) |
| - 測量范圍Rotational speed range | 3 to 99 999 r/min |
| - 測量精度Accuracy | ±0,05% of reading ±1 digit |
| - 測量距離Measuring distance | 50 to 6000 mm |
| 工作角度- Angle of operation | ±60? |
| 激光傳感器- Laser sensor | 1x built-in class 2 laser |
| Battery | |
| 工作時間Operation time | 100 hours continuous use |
| Additional power source | 5 V DC charging port (charger included) |
| 產品尺寸Product dimensions | XXX x XX x XX mm |
| 質量Product weight | XXX g |
| 工作溫度Operating temperature | 0 to 50 °C (32 to 122 °F) |
| 存儲溫度Storage temperature | –10 to +50 °C (14 to 122 °F) |
| 相對濕度Relative humidity | 10 to 90% RH non-condensing |
| 防護等級IP rating | IP 40 |
| 包裝尺寸Case dimensions | 260 x 85 x 180 mm (10.3 x 3.4 x 7.0 in.) |
| 標準配置Case contents |
1x Tachometer LUYOR-925 1X 充電器 1x set of reflective tape 1x printed instructions for use |
