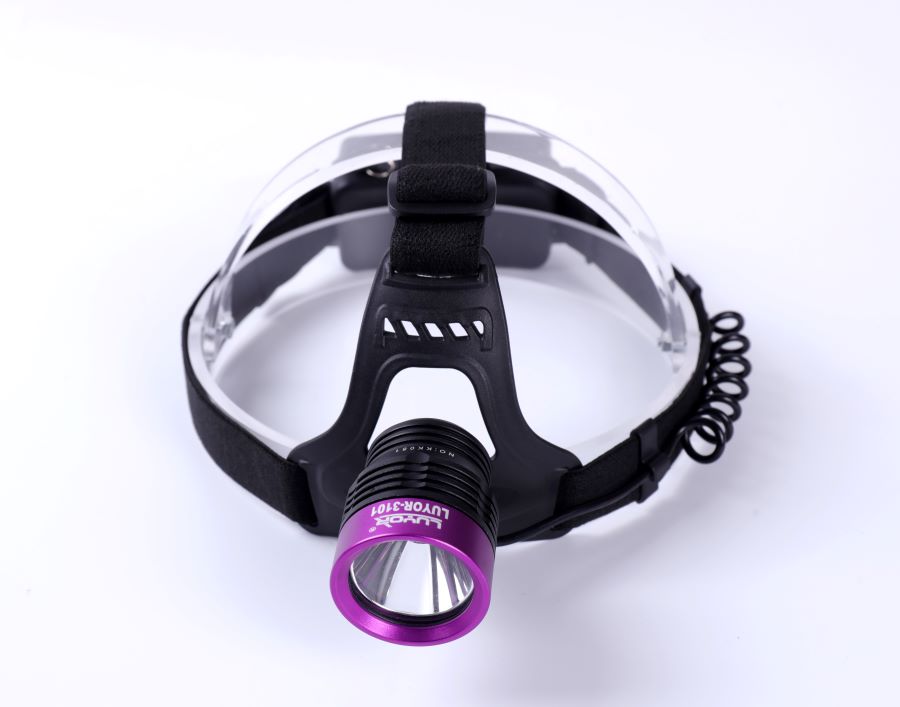

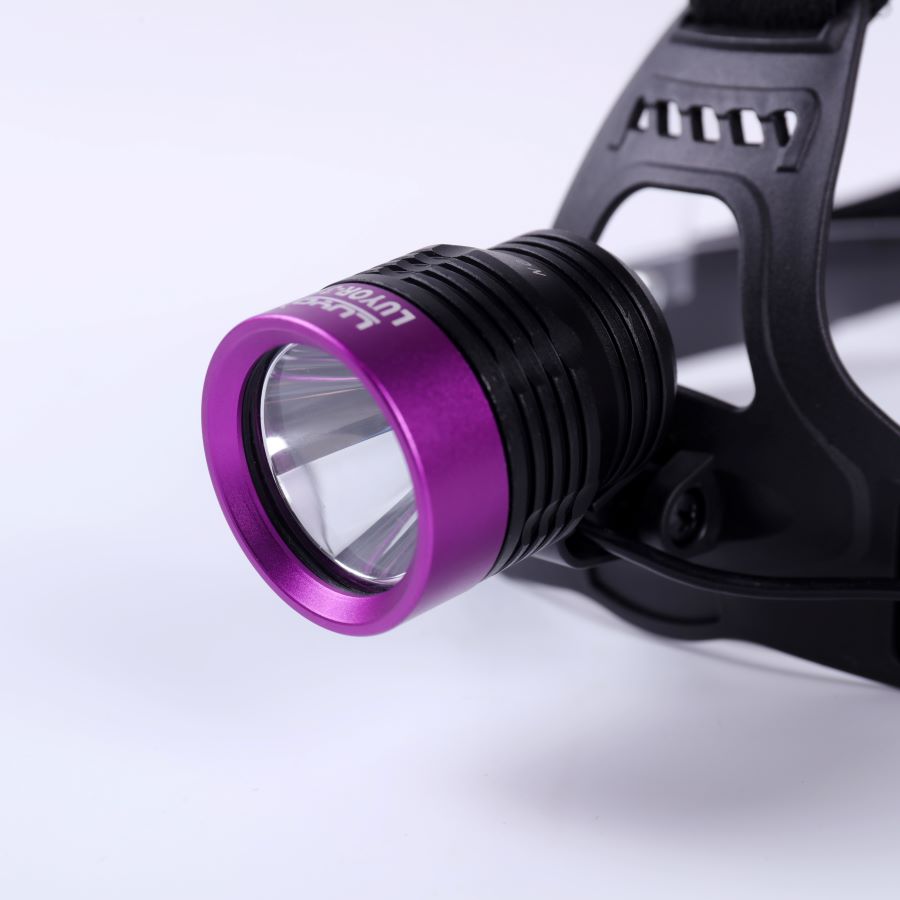

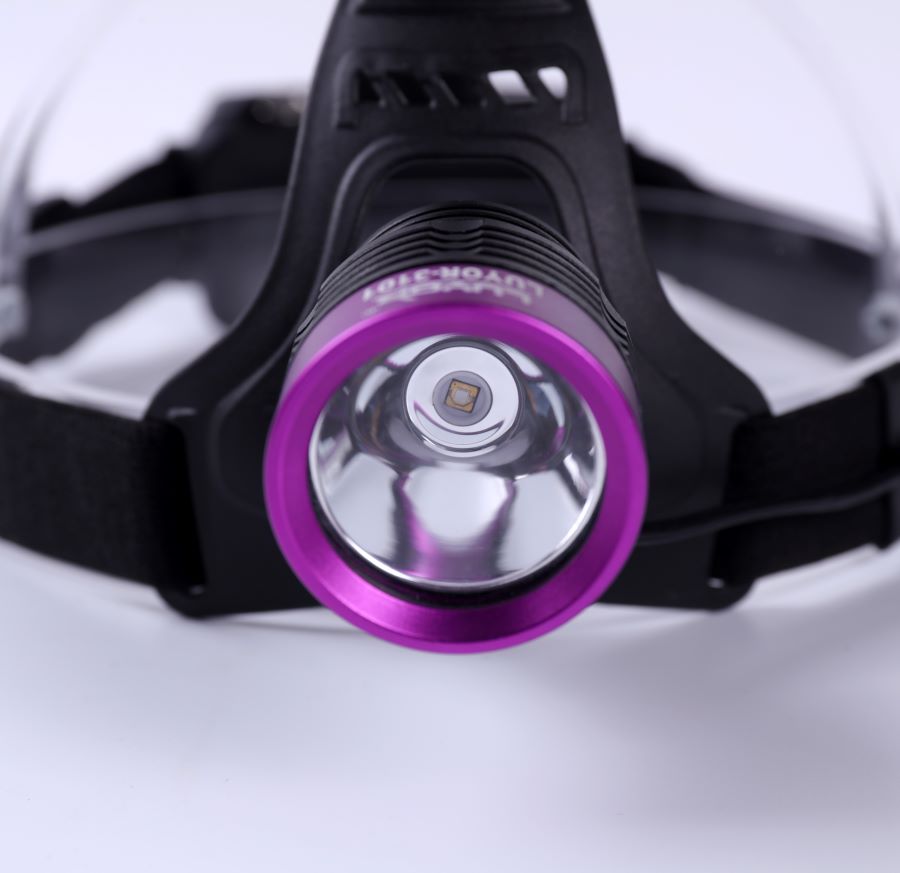

熒光探傷用頭盔式LED黑光燈LUYOR-3101S

一種新的手掌大小，免提光源，可以帶在頭上的紫外線頭盔式LED黑光燈，在檢查中解放了用戶的雙手；LUYOR-3101S頭盔式黑光燈是理想的熒光磁粉和滲透探傷，礦山檢查等的測試工具；UV頭燈配備了功能強大的UV-A（365 nm）的LED燈設計，LUYOR-3101S紫外線頭盔式黑光燈的開/關按鈕被定位在燈的背面，以防止意外的開關；LUYOR-3101S紫外線頭盔式黑光燈特別設計的恒流驅動線路，可以保持UV紫外線強度恒定，即使當電池的容量不足的時候;LUYOR-3101S紫外線頭盔式黑光燈頭部可以90度的上下調整。

頭盔式探傷黑光燈LUYOR-3101S的規格：

 型號：LUYOR-3101S紫外線頭盔式黑光燈
 峰值波長：365-370NM;
 紫外線強度：10000μW/ cm 距離是38cm;
UV LED數量：1× 5W 365NM UV LED，LED平均壽命為30,000小時;
電源：2顆18650鋰電池，4400mAh的，使用時間：3.5小時
照射面積： 50mm 在38厘米距離
產品尺寸：40 *38毫米，重量：200g不含附件

頭盔式探傷黑光燈LUYOR-3101S的特點：

 1. 1× 5W 365NM UV LED，100％固態電路確保正常工作的強磁場；
 2. 低可見光發光：小于2英尺燭光（22勒克司）；
 3.獨特的機械冷卻系統保持LED的冷卻，保持長時間使用過程中的光輸出。是熒光磁粉和滲透探傷工具；
 4.特別設計的恒流驅動線路，可以保持UV紫外線強度恒定，即使當電池的容量不足的時候;

頭盔式探傷黑光燈LUYOR-3101S標準配置：

LUYOR-3101S頭盔式黑光燈 ，充電器，工具箱;紫外線防護眼鏡（橙色或黃色）

LUYOR-3101S頭盔式黑光燈應用：

滲透測試，熒光檢測
生物聚合物，熒光觀察
制冷劑泄漏檢測
發動機機油泄漏檢測
刑偵指紋，血液觀察
礦石的熒光觀察
油污清洗檢測
LUYOR-3101S頭盔式黑光燈主要用途：
熒光檢測：鋼鐵，有色金屬，汽車，飛機，熒光滲透探傷，熒光磁粉探傷
污染檢查：電子元器件，電路板，灰塵檢查，LCD面板，進入潔凈室所檢查
泄漏檢查：液壓機，水池，管道和其他石油泄漏檢測，檢漏，利用熒光劑
除油清洗驗證：食品工業，廚房，炊具，餐具的脫脂清洗

頭盔式探傷黑光燈LUYOR-3101S的英文介紹：

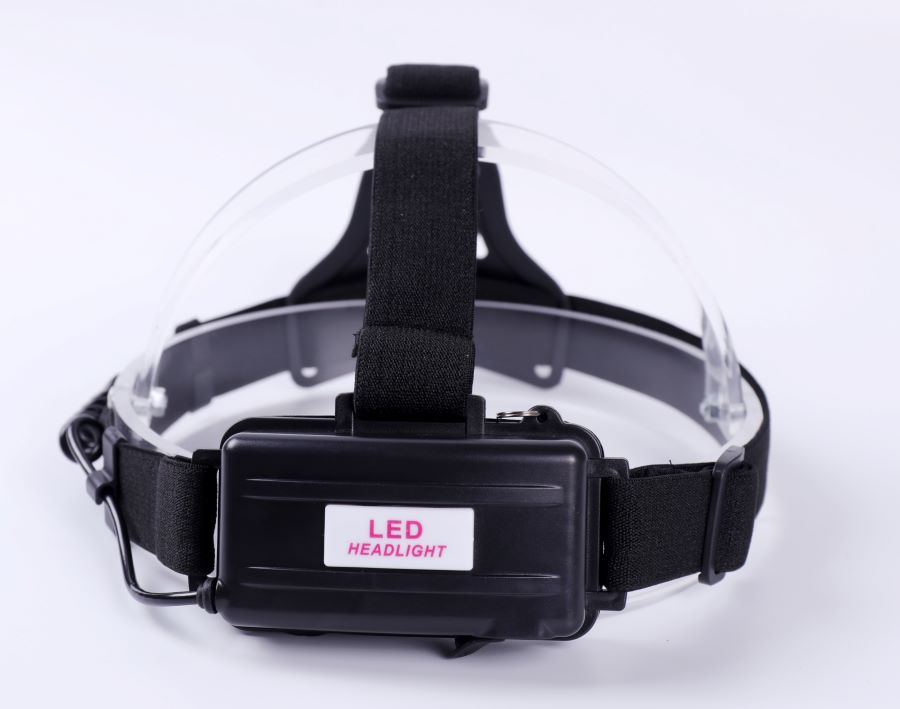

The LUYOR-3101S is a UV LED Head Lamp designed to free the user’s hands during an inspection. The lamp can be adjusted in three different angles. The operator can switch the angles of the light during the inspection. The rubber bands are adjustable and fit helmets as well as heads. The battery is located in the back of the structure and there are no cables hanging from the lamp.

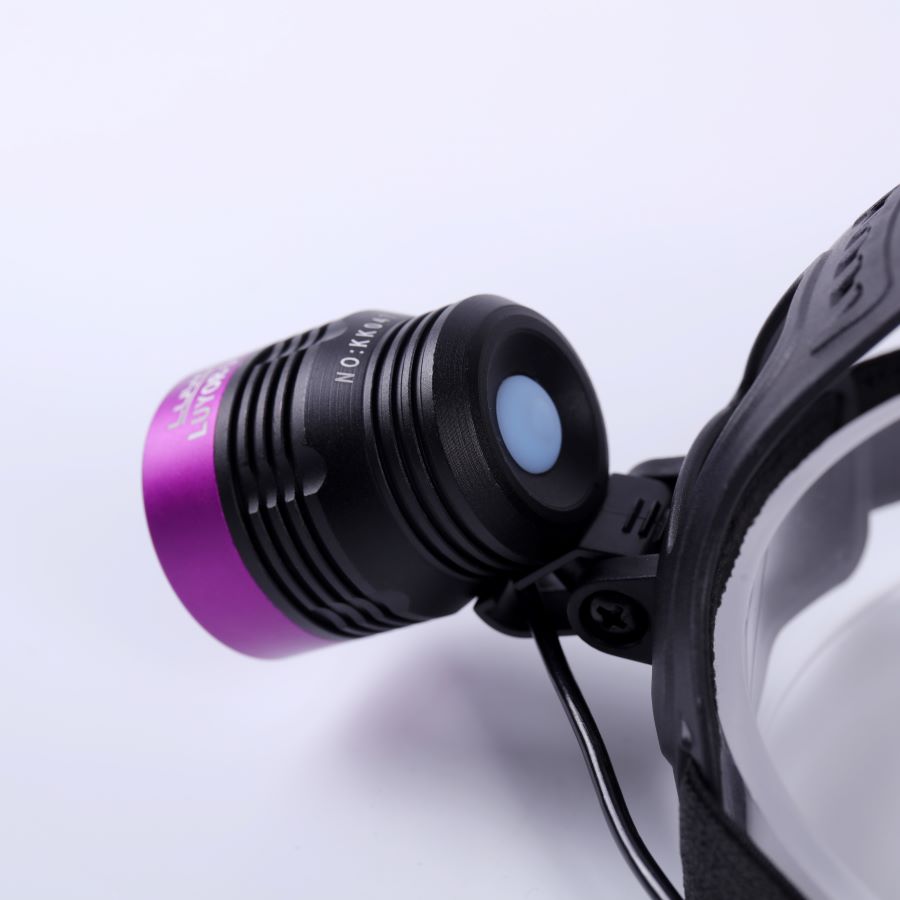

The LUYOR-3101S reach full power instantly. The on/off button is positioned at the back of the lamp to prevent accidental activation. Each head light weights 271 grams (9.4 oz). The lamp contains one ultraviolet light emitting diode (LED) that peaks at 365 nm. The life of each LED is estimated at 30,000 hours.

The battery has a running time of 3 hours (+/- 5%) and can be recharged from a normal outlet or a vehicle cigarrette lighter socket. The lamp is also equipped with a current regulator that keeps the UV intensity constant even when the battery fades. Each unit comes with an extra battery.

The LUYOR Head Light is also available as white light. This small but powerful tool creates more than 10,000 lux (930 foot Candles) within a distance of one meter. The distribution angle for white light is spotlight.

LED: 1 LED, 365 nm
Available in two different beams:
Spotlight: >25 000 μW/cm2
Midlight: >10 000 μW/cm2
Life time expect: 30 000 hrs (LED)
Battery running time: 3 hrs (+/- 5%)
Weight (incl. battery): 271 gr (9.4 oz)
Equipped with a current regulator which keeps the UV Intensity constant even though the battery fades
