美國 MONARCH INSTRUMENT ACT-1B 面板轉速表

作者：MONARCH INSTRUMENT 時間：2024-06-17 09:04:51瀏覽464 次

信息摘要：

ACT-1B 面板轉速表與帶有鍍錫線“-W”連接的 Monarch 速度傳感器兼容。它可按您的規格進行出廠配置，或使用可選的 USB 編程電纜進行現場用戶配置。USB 編程電纜和可免費下載的PM 遠程軟件還允許在本地 PC 上實時顯示和記錄數據。提供可選的 NIST 可追溯證書。

美國 MONARCH INSTRUMENT ACT-1B 面板轉速表

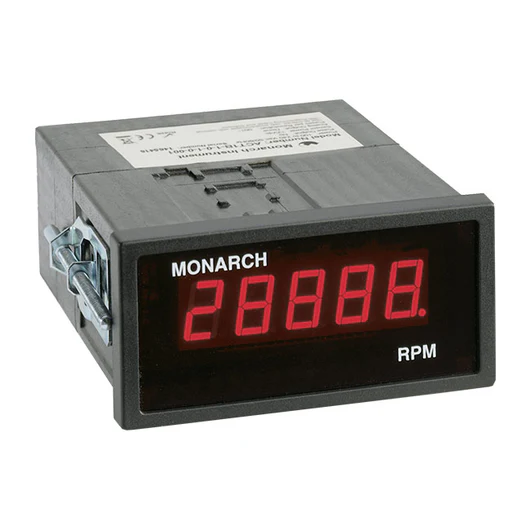

ACT-1B 面板轉速表

特征

型號 – 通用輸入，通過光學、紅外、激光、接近和磁性傳感器或直接 TTL 和 3.3 至 50 V 交流信號進行非接觸式操作

ACT-1B 面板轉速表

經濟實惠
1/8 DIN 尺寸
5位LED顯示屏
5 至 99,999 RPM 范圍
通用傳感器輸入
與大多數速度傳感器兼容
用戶可配置*
在電腦上查看實時數據*
實時將數據存儲于 Excel 文件中*
通用交流電源 100-240 V 交流電，50/60 Hz 或可選直流輸入電源
可選 4-20 mA 或 0-5 V dc 可擴展輸出

規格*

Speed Range	5 to 99,999 RPM
Accuracy	±1 RPM or 0.005% of reading
Resolution	1 RPM (user-programmable to 0.0001?)
Display	5-digit, 0.56 in. [14 mm] high red LED
Display Update	Twice per second above 120 RPM (user-programmable to 0.5, 1 or 1.5 second?)
Dimensions	1/8 DIN by 4.5 in. [114 mm] deep Panel cutout: 3.58″ x 1.74″ [91 x 44 mm]
Power Supply	Standard: 100-240 V ac ±10%, 50/60 Hz, Optional: 12 or 24 V dc ±10%, Isolated, 5.0 Watts

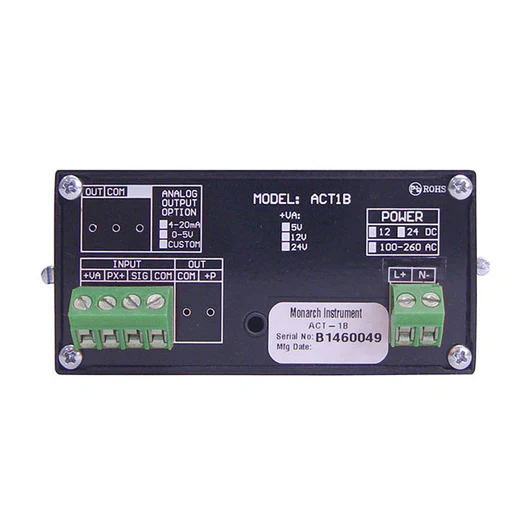

Inputs	Universal input for optical, proximity, two-wire, or three-wire magnetic, infrared, or laser sensors TTL input or 2 V ac to 50 V ac peak to peak input Standard input is 1 pulse per revolution (user-programmable from 1 to 999?)
Sensor Excitation	12 V dc at 20 mA for proximity sensors, 12 V dc at 75 mA for all other sensors; Optional 5 or 24 V dc available
Recommended Sensors	Optical – ROS-W, ROS-HT-W-25 Proximity – P5-11 Magnetic – M-190W or MT-190W Infrared – IRS-W Laser – ROLS-W or RLS-W
IO Option	4 to 20 mA out, 16-bit resolution 12 V dc compliance voltage Full-scale RPM settings as specified when ordered (user-programmable?)
Analog Output (option)	0 to 5 V dc, 5 mA 16-bit resolution Full-scale RPM settings as specified when ordered (user-programmable?)
PO (option)	0 to 5 V TTL pulse, non-inverting, one pulse out for each pulse in (Positive or negative out programmable?)
Environmental	This product is designed to be safe for indoor use under the following conditions (per IEC61010-1): Installation Category II per IEC 664 Pollution Degree Level II per IEC 664 Operating Temperature: 32 °F – 122 °F [0 °C – 50 °C] Humidity: Maximum relative humidity 80% for temperature up to 88 °F (31 °C) decreasing linearly to 50% relative humidity at 104 °F (40 °C)
