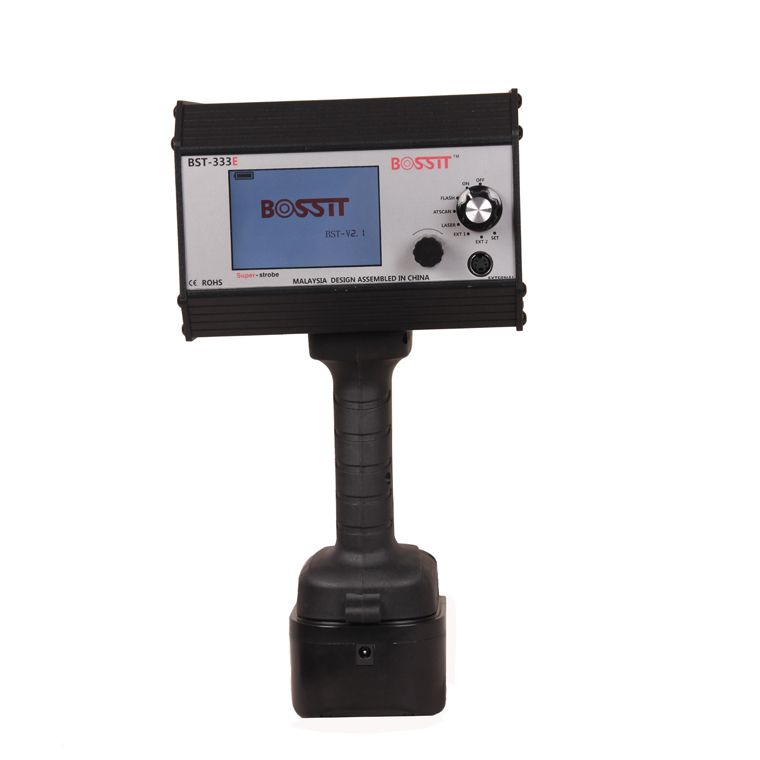

BST-333E手持式大功率LED頻閃儀

BST-333E手持式大功率LED頻閃儀是采用激光傳感器識別圖案技術，來實現自動閃光同步檢驗印刷圖案及光標的產品；它具備激光自動定位、激光定長、激光設定個數等多種頻閃方式、同時具備自動行掃描、相位角度位移、單次曝光時間設定、占空比角度時間設定、外觸發定長頻閃等功能；其光源采用美國科瑞10瓦大功率燈珠，34顆或者75顆LED按并聯分布，整體亮度高、光斑均勻、壽命超過30，000小時，全球質保兩年（電池一年）  轉速測量高每分鐘120萬轉 ；顯示采用480x320彩色3.2寸LCD屏，操作按鈕選用ALPS切換開關及旋轉編碼器，壽命長；外置鋰電池盒，充滿電后單次使用時間10小時以上。

BST-333E手持式大功率LED頻閃儀是用來測量高速運動的物體，當頻閃儀的閃光速度與高速運動的物體速度相同步時，我們看到的是一個相對靜止的狀態。這個原理使我們可以清晰的觀察到運動中的齒輪咬合、各類轉子的工作情況。

BST-333E手持式大功率LED頻閃儀廣泛用于包裝印刷行業，檢測印刷品質、模切、打孔、折疊；用于紡織業的紡紗機和繞線機上錠子的轉速測量；用于機械制造業的非接觸性轉速測量、檢測震蕩幅度和振動頻率，以及加工中心刀具的磨損情況；還可用于飛機制造、汽車制造、電纜噴碼、采礦業、造船、鋼鐵、化工、光學、醫療等行業。

BST-333E手持式大功率LED頻閃儀主要參數

設定精度  （內部振動）： 0.01%± 1 digit（25℃時）

設定分辨率（內部振動）：

36 .0~12,000FPM ± 0.6 FPM

0.6~200HZ ± 0.01 HZ

12,000.1~20，000FPM        ± 6 FPM

200.1~2,000 HZ             ± 0.1 HZ

120,000.1~1,200，000FPM    ±30 FPM

2,000.1~20,000 HZ          ± 0.5 HZ

功率：≤ 350 W

尺寸（不含手柄及電池盒）：166mm*110mm*165mm

重量：約1.6 Kg

LED規格及性能：CREE 10W; 壽命30000 H

鋰電池規格及容量：DC 16.8 V/2600 ma/H

單位：轉速、頻率

測量范圍： 36 ~1,200,000 FPM

X2 、1/2：倍頻、半倍頻

外部輸入：傳感器脈沖信號觸發（光電、齒輪傳感器、編碼器）

BST-333E big power hand-held LED strobe is our newest developed high-tech product, it is the first set using laser sensor recognize pattern technology to realize automatic flash sync to inspect printing pattern; It is an automatic positioning, fixed length, laser set number flashes in a variety of ways, at the same time with automatic scan, phase angle measurement, single exposure time setting, duty cycle time setting, external trigger fixed-length function, etc; The light source adopts USA CREE 10 watts power, 34pcs or 75pcs LED lamps in parallel distribution, high brightness, life time more than 30000 hours, guarantee for two years (battery one year); Highest speed measuring 1.2 million revolutions per minute; Display with 480 x320 color 3.2 -inch LCD screen, Japanese ALPS switch and rotary encoder, with two extra lithium battery pack for replacement, can use more than 20 hours after charge.

This instrument used to measure movement of object, when strobe flash speed same with high speed moving object, what we see is a relatively static state. Under this principle we can clearly observed movement of the gear wheels, working condition of all kinds of rotor.

This instrument is also widely used in packaging and printing industry, check printing quality, die cutting, punching, folding; Used for textile spinning and winding machine spindle speed measurement; Used in machinery manufacturing non-contact speed oscillation amplitude and vibration frequency measurement, detection, tool wear and machining center; Can also be used in aircraft manufacturing, automobile manufacturing, printing, mining, shipbuilding, steel cable, chemical, optical, medical and other industries.

2.Main parameter and function

Setting accuracy（vibration）： 0.01% ± 1 digit（25℃）

Setting resolution（vibration）：

36 .0~12,000FPM   ± 0.6 FPM

0.6~200HZ    ± 0.01 HZ

12,000.1~20，000FPM       ± 6 FPM

200.1~2,000 HZ             ± 0.1 HZ

120,000.1~1,200，000FPM   ±30 FPM

2,000.1~20,000 HZ          ± 0.5 HZ

Power：≤ 350 W

Dimension-not include handle and battery pack：166mm*110mm*165mm

Weight：about 1.6 Kg

LED specification and function：CREE 10W; life time 30000 H

Battery：DC 16.8V/3000 ma/H

Units：speed, frequency

Range： 36 ~1,200,000 FPM

X2 、1/2：multiply or divide by 2

External input: Sensor pulse signal to trigger (photoelectric, gear sensor, encoder)
