如果要觀察tdTomato熒光蛋白(tdTomato Fluorescent Protein)的表達,美國路陽生產的便攜式熒光蛋白激發光源,可以選擇LUYOR-3260GR和LUYOR-3415RG系列雙波長熒光蛋白激發光源。tdTomato紅色熒光蛋白采用美國路陽綠光激發,佩戴LUV-50A紅色觀察眼鏡觀察,如希望提供更多詳細信息,可直接聯系上海路陽生物技術有限公司的銷售客服,我們提供樣
tdtomato紅色熒光蛋白的激發光波長是多少
tdtomato熒光蛋白是屬于一種紅色熒光蛋白,可以用520nm的綠光激發,發射出的熒光為紅色。

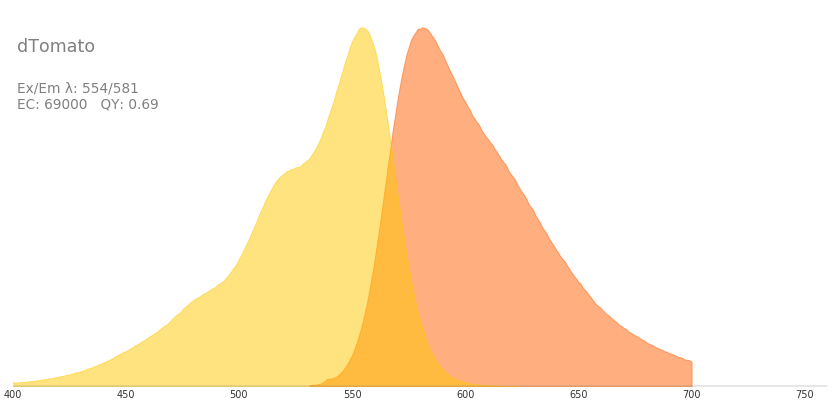

tdtomato紅色熒光蛋白的激發光和發射光的光譜圖
Tdtomao紅色熒光蛋白用哪款激發光源能看到熒光表達?
如果要觀察tdTomato熒光蛋白(tdTomato Fluorescent Protein)的表達,美國路陽生產的便攜式熒光蛋白激發光源,可以選擇LUYOR-3260GR和LUYOR-3415RG系列雙波長熒光蛋白激發光源。tdTomato紅色熒光蛋白采用美國路陽綠光激發,佩戴LUV-50A紅色觀察眼鏡觀察,如希望提供更多詳細信息,可直接聯系上海路陽生物技術有限公司的銷售客服,我們提供樣機免費試用!

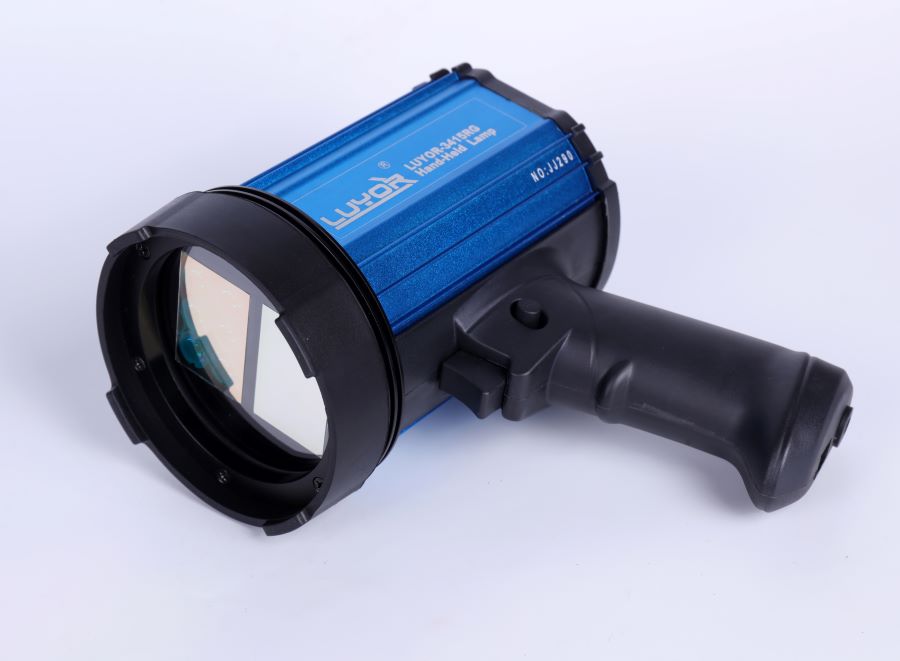

上圖為能夠激發tdTomato Fluorescent發出紅色熒光的激發光源

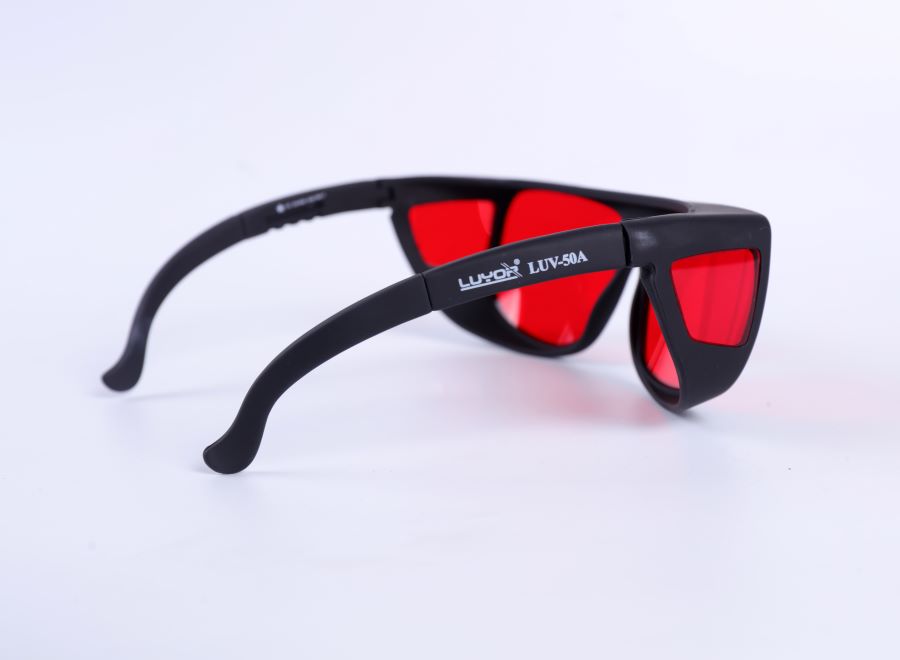

上圖觀察tdTomato Fluorescent的LUV-50a觀察眼鏡
tdTomato is a basic (constitutively fluorescent) orange fluorescent protein published in 2004, derived from Discosoma sp.. It is reported to be a somewhat slowly-maturing tandem dimer with low acid sensitivity.

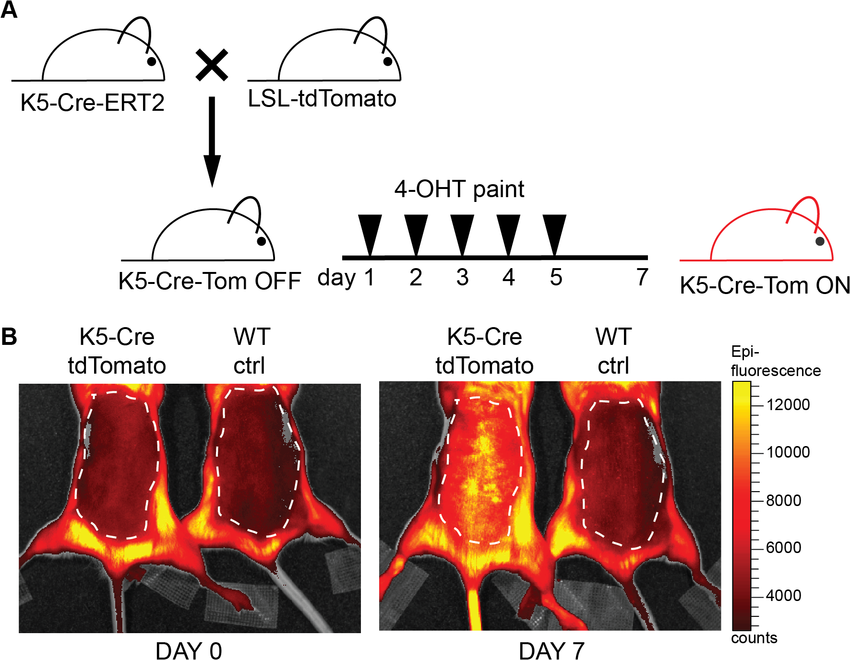

TdTomato is expressed in the skin upon crossing of the reporter mice with a K5-Cre-ERT2 line. A Schematic representation of the breeding to K5-Cre-ERT2 and of 4-hydroxytamoxifen (4-OHT) applications on the shaved back skin (1 mg in ethanol for five consecutive days). B Prior (day 0) and after 4-OHT application (day 7), mice where imaged with the IVIS spectrum (excitation: 570 nm; emission: 620nm; exposure time: 10 sec; binning: HR4. Color scale min = 2600 counts, max = 13000 counts). TdTomato was expressed in the skin of double positive, treated animals. Dashed line indicates the 4-OHT treated shaved back skin.
上圖為Tdtomato熒光蛋白在愈傷上的表達(LUYOR-3415RG激發光源照射下,用LUV-590A拍照濾鏡拍照)
上圖為dsred熒光蛋白在玉米種子上的表達(LUYOR-3415RG激發光源照射下,用LUV-590A拍照濾鏡拍照)
