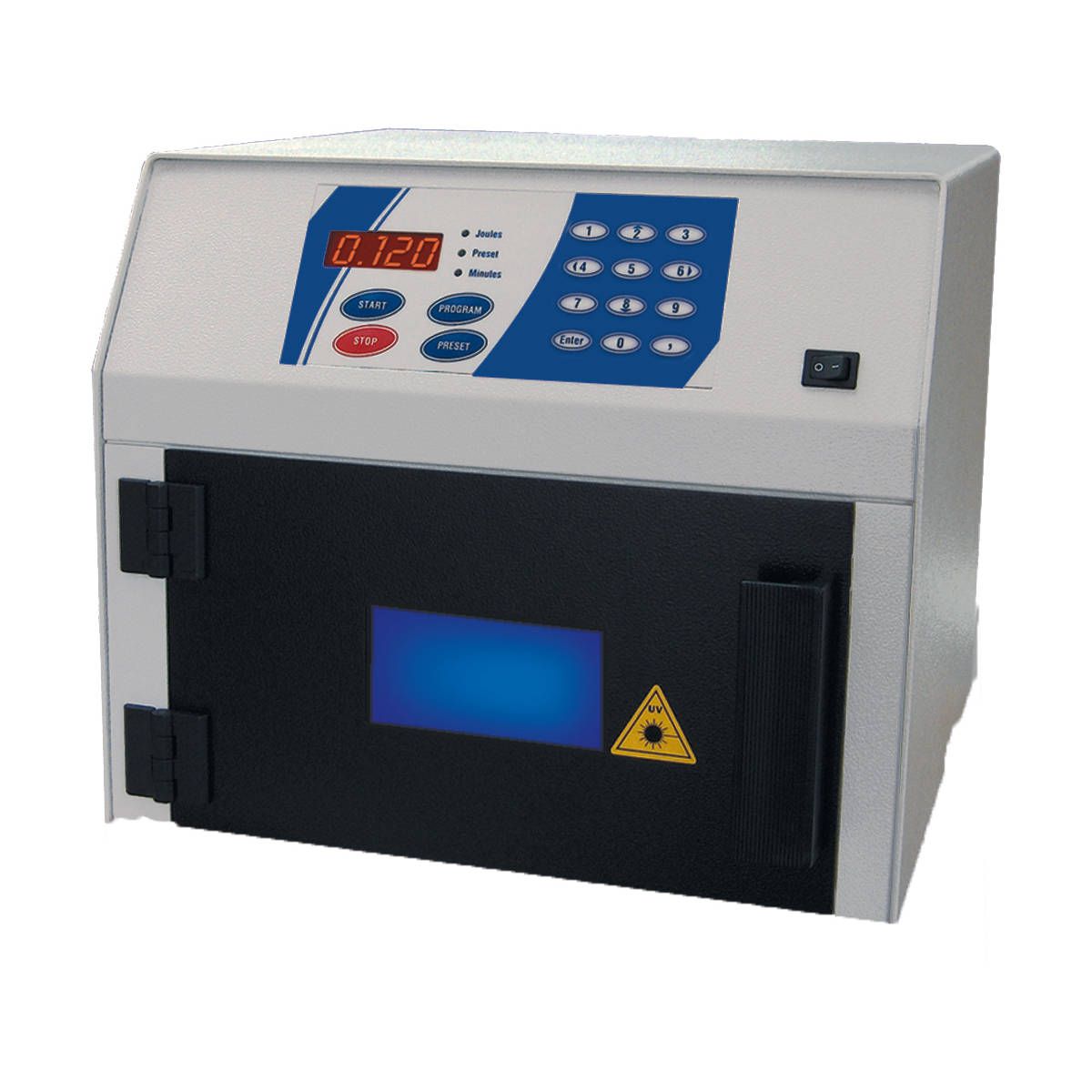

CL-508 UV Crosslinkers

The CROSSLINKER (CL-508G) is a complete, microprocessor controlled UV irradiation system, mainly dedicated to the linking of nucleic acid to membranes and elimination of PCR contamination. Its innovative design ensures unique features:

Microprocessor controlled. The programmable microprocessor constantly monitor the UV light emission. The irradiation stops automatically when the energy received matches the programmed energy.

Reproducibility. Thanks to its UV sensors, irradiation cycles are perfectly reproducible, regardless of intensity fluctuation of the UV source. Just programme your energy and CROSSLINKER? delivers it

CROSSLINKER combines the latest technology with a very high quality of components : UV exposure chamber in stainless steel, protective quartz disk on the UV sensor cell, highly resistant tactile membrane keypad..

Ease of use. The readout display and the large number of pre-sets, in either energy unit (Joules/cm2) or time unit (seconds) makes the CROSSLINKER a very simple instrument to use while very powerful

Consistent measure. The UV light intensity is captured in a well of light, positioned above the irradiation chamber. The UV cell measure is then collected from all the UV tubes and not just one. This also protect the UV cell from any dirt which can enter the chamber.

This unit has a 12 month limited warranty, for more information, consult our terms and conditions.

Product Includes: UV Crosslinker

Parameter:Value

External Dimensions: (H x D x W)30.5 x 36 x 35 cm

Internal Chamber Dimensions: (H x D x W)14.5 x 33 x 26 cm

Weight:10 Kg

UV Wavelength:254nm (G), 312nm (M) or 365nm (BL_

UV Source:5 x 8W tube

Programming options:9 pre-set UV Energy exposures, 9 pre-set UV exposure Time, manual setting of UV Energy exposure, Min.0.025 Joules / Max. 99.99 Joules, manual setting of UV exposure Time, Min.10 Seconds / Max.599 Minutes

Energy Display:2 options, 0.000 to 9.999 Joules or 0.00 to 99.99 Joules

Time Display:2 options, 00.00 to 99.59 minutes or 000.0 to 599.5 minutes

UV Crosslinker, 365nm SKU: CL-508.BL

UV Crosslinker, 254nm SKU: CL-508.G

UV Crosslinker, 302nm SKU: CL-508.M

DNA 紫外交聯儀CL-508G

用于交聯核酸或消除PCR污染

微處理器控制器可進行可編程設置

9個紫外線和時間曝光的預設程序

0.120J/cm2的核酸固定化預設程序

寬敞的不銹鋼曝光室

紫外交聯儀CROSSLINKER（CL-508）是一個完整的、由微處理器控制的紫外線照射系統，主要用于核酸與膜的連接和消除PCR的污染。它的創新設計確保了獨特的功能。

微處理器控制?？删幊痰奈⑻幚砥鞑粩啾O(jiān)測紫外光的發射。當收到的能量與編程的能量一致時，輻照會自動停止。

可重復性。由于它的紫外線傳感器，無論紫外線源的強度如何波動，輻照周期都是完全可重復的。只需對能量進行編程，CROSSLINKER?就能提供能量。

CROSSLINKER結合了新的技術和非常高質量的部件。不銹鋼的紫外線照射室，紫外線傳感器單元上的保護性石英盤，高度耐磨的觸覺薄膜鍵盤。

易于使用。讀數顯示和大量的預設，無論是能量單位（焦耳/平方厘米）還是時間單位（秒），都使CROSSLINKER成為一個使用非常簡單的儀器，同時功能非常強大。

一致的測量。紫外光強度是在一個光井中采集的，位于輻照室的上方。紫外電池的測量是由的紫外管收集的，而不僅僅是一個。這也是為了保護紫外線電池不受任何可能進入室內的灰塵的影響。
