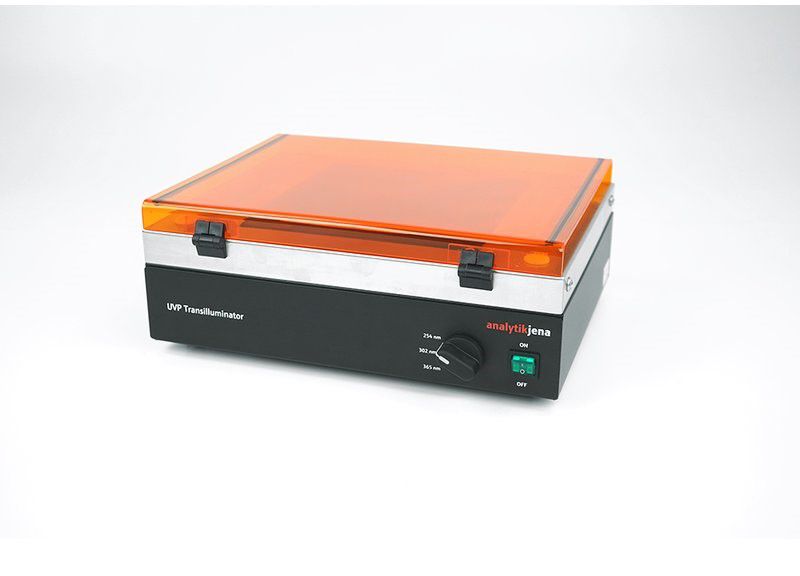

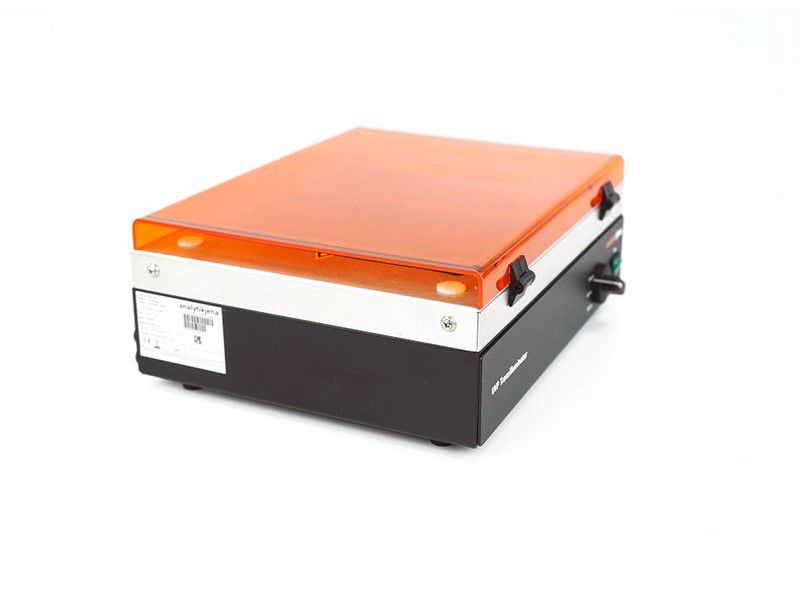

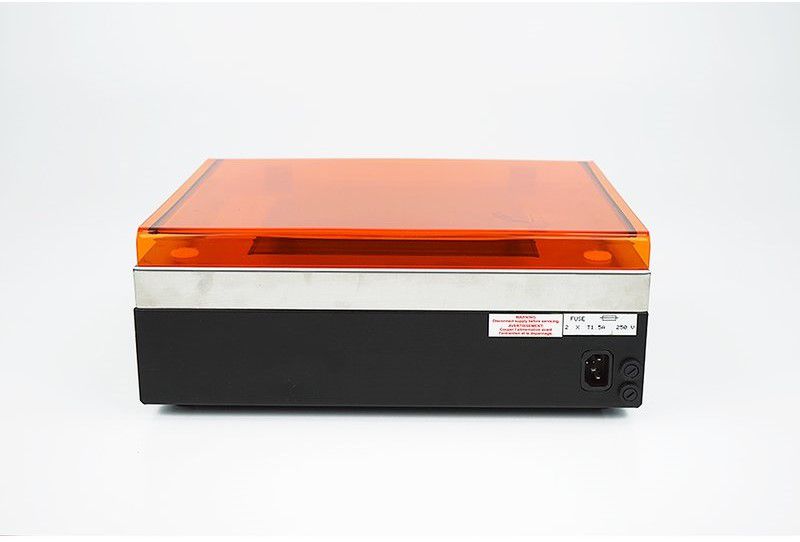

美國UVP公司analytikjena LMS-20三波段紫外透射臺95-0417-02

美國UVP公司analytikjena LMS-20三波段紫外透射臺95-0417-02，LMS-20三波段紫外透照臺，短波254nm/中波302nm/長波365nm，透照面積為20x20cm。中國地區220V電壓訂貨號為：95-0417-02

美國UVP LM-20 2波段紫外透射儀內置了302nm/365納米，透照面積為20厘米x 20厘米，訂貨號為95-0449-02

LMS-20三波段紫外透射臺主要特點

   增強的紫外線輸出和強度
   不亮閃爍
   較寬的強度范圍與變量選擇（指定機型）
   燈快速啟動
   通用電源
   降低耗電量
   燈管壽命長
   重量輕
   改進的凝膠可視化和凝膠文件


   透照特性
   3UV透照臺提供254nm、302nm和365nm的兩種紫外波長
   輕松查看365nm的長波紫外光凝膠，以避免長時間損壞樣品。研究人員可以使用中波302nm增加熒光。短波254nm的來照射樣品。
   緊湊型透照臺，重量輕
   8瓦的型號提供了一個低成本的高性能紫外透射儀
   Benchtop系列透照臺合理的結構設計與優質的紫外燈管，保證了紫外透射臺光照亮度均勻。
   單波長紫外透射臺標配有302nmUV燈管,另有多種波長可選，以配合不同染料如常用的EB, SYBR-Green，SYBR-Orange等染色的凝膠觀察。
   雙波長的紫外透射臺可滿足實驗的不同需要，302nm適合DNA/RNA樣品的觀察和分析，365nm適合制備觀察以及切割條帶，減少對DNA的破壞.雙波長的紫外透射臺可滿足實驗的不同需要。
   獨特的紫外防護板設計，既不影響切膠操作，又大程度防止了紫外線對人體的傷害。
   警告：透射儀具有強大的紫外線輻射，會對眼睛和皮膚造成嚴重?fù)p害，注意保護措施。操作之前請閱讀透照紫外線警告信息

產品規格
強度：部分型號提供單強度其他型號包括可變強度。
可變強度設置 - 高/中/低：設置允許對凝膠進行日常拍攝的熒光紫外光激發。中檔非常適合觀看快速單波段切除。低檔設置允許定位和準備凝膠，切除多頻段和對焦攝影。
紫外光源：參考部件號選項卡
功率：8瓦
外形尺寸
3UV型號：279x356x137mm

高度包括紫外線阻隔板（型號）


型號

Part Numbers

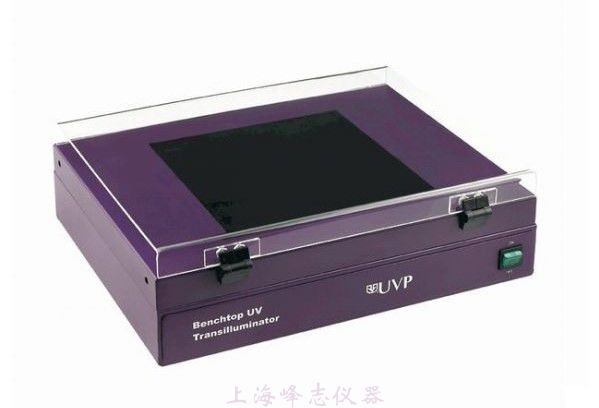

   Benchtop UV Transilluminators
   UVP offers a wide range of filter sizes and single or multiple UV wavelength transilluminators in a compact, benchtop size. UVP's patented 3UV? Benchtop Transilluminator (main picture) provides the selection of longwave, midrange and shortwave in one compact unit.

   Applications
   Gel Electrophoresis
   DNA Fluorescence
   Protein Fluorescence

   Main Features
   Increased ultraviolet output and intensity
   No light flicker
   Wider intensity range with variable selection (select models)
   Fast lamp start up
   Universal power supply
   Reduced electrical consumption
   Longer tube life
   Lighter weight
   Improved gel visualization and gel documentation

   Transilluminator Features:
   UVP's patented 3UV Benchtop Transilluminator provides the selection of 365nm, 302nm and 254nm in one compact unit
   2UV models offer 302nm and 365nm UV in one model
   Easily view gels under 365nm longwave UV for extended periods of time avoiding photonicking damage. Researchers can use the 302nm midrange to increase the fluorescence for photodocumentation. Shortwave 254nm UV is used to irradiate samples
   All Benchtop Transilluminator models are compact, lightweight units
   These 8-watt models provide a low cost alternative to the High Performance UV Transilluminators
   A variety of filter area work surface sizes are available
   Hinged, clear UV blocking cover, included with each transilluminator, is adjustable for access to the filter surface
   WARNING: Transilluminators are powerful sources of ultraviolet radiation which can cause serious damage to unprotected eyes and skin. Read the ultraviolet Caution Information before operating any transilluminators.

   Specifications
   Intensity:  Select models offer single intensity other models include variable intensity. Refer to the part numbers tab for information.

   Variable intensity settings - High/Medium/Low:   High setting allows for UV excitation of fluorophores on gels for routine photography. Medium is excellent for viewing and quick single-band excision. Low setting allows for positioning and preparation of gels, excising multiple bands, and focusing for photography.
   UV Source:   Refer to the Part Numbers tab for specific wavelengths for each model
   Watts:  8 or 6 - Refer to the Part Numbers tab for watts

   Dimensions
   3UV Models:  11D x 14W x 5.4H in. (279 x 356 x 137mm)

   2UV Models:  11D x 14W x 4.8H in. (279 x 356 x 122mm)

   Single UV/Variable Intensity Models (Except M-10):   11D x 14W x 4.8H in. (279 x 356 x 122mm)

   M-10:  7.25D x 10.25W x 4.5H in. (184 x 260 x 114mm)

   Height includes UV blocking cover (all models)

   Note about UV: UVP refers to its midrange UV products as 302nm. Other manufacturers may say 300nm, 310nm or 312nm. The spectral output of these units is the same as UVP's 302nm. Please call UVP's technical services for further information or link here to Midrange Application Bulletin.

   Options
   Gel Tools
   Converter Plates
   UV Blocking Eyewear

   Ordering Information
   *Standard ballast, not electronic ballast. 115V unit.
