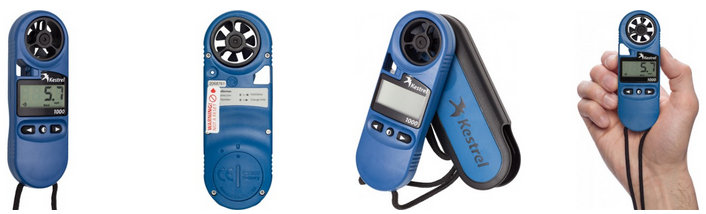

美國NK1000風速儀
NK1000風速儀是一款高精度耐用戶外風速儀,采用高精度超輕型寶石軸承葉輪來測量風速,啟動風速低,葉輪安放在強化玻璃塑料支架上,安裝簡單,更換方便。NK1000風速儀便攜小巧,可方便的裝在口袋中,堅固耐用(跌落測試符合MIL-STD-810G標準),完全防水(防護等級IP67),幾乎可以在任何地方進行測量。
美國NK1000風速儀使用耐沖擊噴射成型塑料和耐腐蝕材料制造,電子元件完全密封。不用時有一堅硬外罩加以保護,同時還提供一個系索,更加保證安全。
美國Nielsen-Kellerman公司設計,制造和銷售用于活躍生活方式和技術應用的堅固耐用的便攜式風速儀和手持式氣象儀,包括Kestrel風速儀和氣象儀,遠距離射擊精度的Kestrel彈道風速儀,劃船和劃槳NK電子以及藍色海洋堅固的擴音器PA系統。
美國NK1000風速儀的特點:
風速測量
小巧堅固的設計
高精密寶石葉輪
大而清晰的液晶顯示功能
zui大值和平均值功能
單位可選(Kt、m/s、KMH、MPH、FPM/IO)
防水(IP67標準),可漂浮在水上
有備用葉輪
NK1000風速儀
美國NK1000風速儀技術參數
風速
工作模式:平均3s移動
顯示更新:1s
單位:節(kt)、米/秒(m/s)、公里/小時(KM/H)、英里/小時(MPH)、英尺/分鐘(FPM)及蒲福(B)風級
分辨率和范圍:Kt、m/s、KM/H或MPH;
分辨率0.1顯示范圍199.9
zui小速度: 0.3m/s(0.6Kt:1KM/H;0.7MPH;60fpm)
zui大速度:40m/s(78kT:144KM/h;89MPH;7830fpm)
準確度:風速±3%
顯示更新:1s
分辨率:1s
抗震:從2m高處落下
自動關閉:停止操作30min后
電池:CR2032鋰紐扣電池。典型電池壽命400 h
注意:fpm/10顯示范圍是6到783
尺寸:L113mm x W42mm x H14mm
我公司長期提供美國NK風速儀,無線氣象站:
美國NK Kestrel 1000/2000/2500/3000/3500/4000/4100/4300/4500
NK1000風速儀
美國NK1000風速儀英文介紹:
Kestrel Meter 1000 Wind Meter

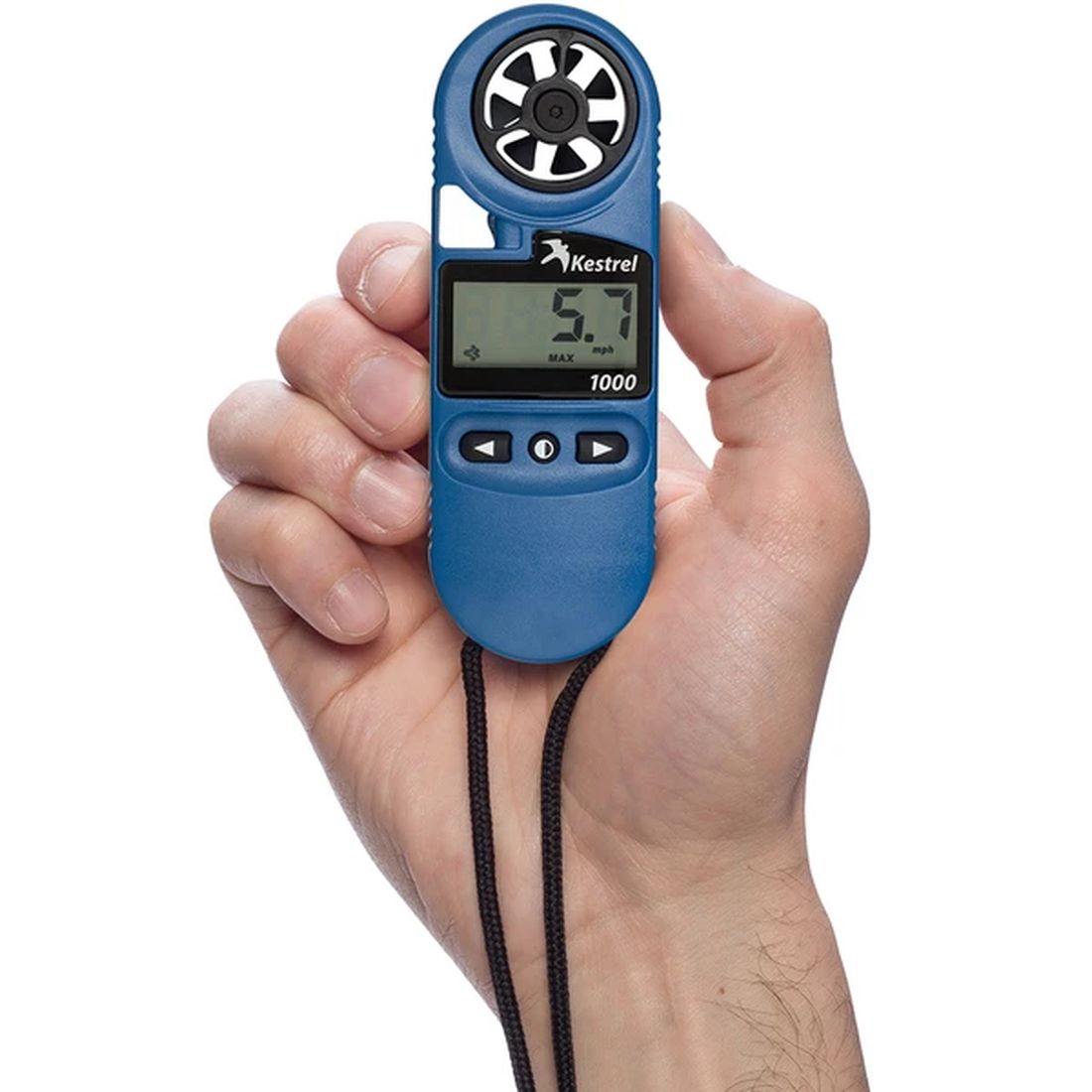

The Kestrel 1000 Wind Meter is the base model in our extensive assortment of Kestrel pocket weather meters. Simple and compact, the Kestrel 1000 fits right into the palm of your hand and weighs a mere 65 grams. It's also extremely durable and totally waterproof, allowing you to measure wind speeds in even the harshest weather conditions. Waterproof and floats.
Convenient and reliable, the Kestrel 1000 is the perfect tool for model plane pilots, kite boarders, and other outdoor enthusiasts who rely on accurate wind speed information. A hard slide-on case, lanyard, and battery are included.
The Kestrel 1000 is the most common for a DZSO (Drop Zone Safety Officer)
Winds can be measured on any Kestrel up to 135 mph. NK only guarantees the accuracy of the measurement to be within tolerance up to 89 mph. Also at those speeds, it is not recommend any prolonged exposure as it could damage the impeller at those speeds for any prolonged length of time. It is similar to being able to measure very hot temperatures outside of the spec range but do not do it for any extended time.

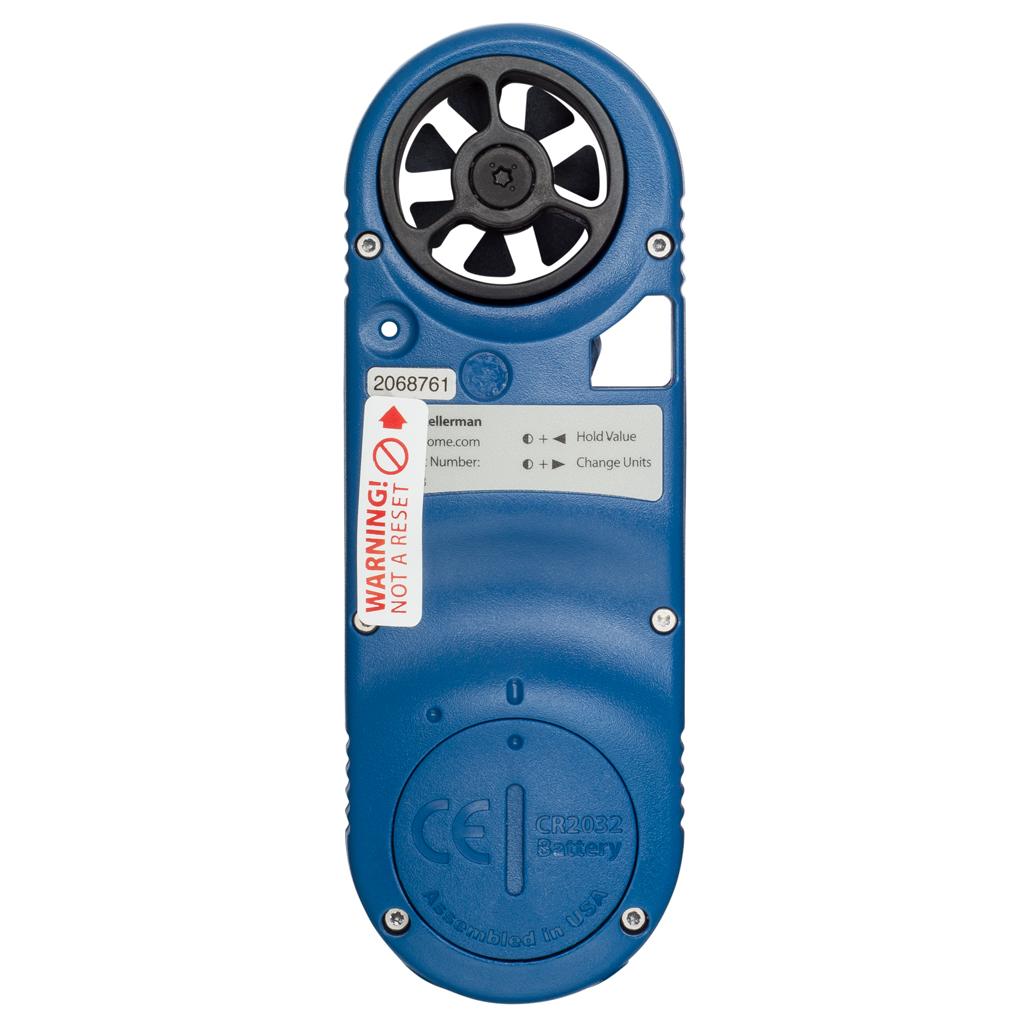

NK1000風速儀的背面
Impeller:
Every Kestrel Meter features a large, 1” impeller mounted on a sapphire jewel bearing, which means it starts rotating with the slightest puff of air. This patented impeller is user-replaceable by simply pushing it out with your thumbs, which means it can easily be replaced if it is damaged or worn. The measurements from the wind impeller are taken magnetically. The impeller is not glued or attached to the unit. Because every new impeller is calibrated in the wind tunnel at the USA factory, if your application demands regular calibration, simply pop in a new impeller and the Kestrel Wind Meter is restored to like-new factory calibration standards. The Kestrel 1000 can easily be switched between mph, km/h, ft/min, m/s, knots and Beaufort.
For nearly 20 years on the portable weather meter market, the Kestrel 1000 is still one of the most reliable handheld weather meters.
Measures:
?Current Wind speed
?Maximum wind gust
?Average 3 Second wind speed
AS TRUE FOR ALL KESTREL METERS:
Resolution | Operational Range |
0.1 m/s | 0.6 to 60.0 m/s |
1 ft/min | 118 to 11,811 ft/min |
0.1 km/h | 2.2 to 144.0 km/h |
0.1 mph | .3 to 134.2 mph |
0.1 knots | 1.2 to 116.6 knots |
1 B | 0 to 12 B |
The Kestrel Meter 1000 Wind Meter measures/features
?Current Wind Speed
?Average Wind Speed
?Maximum Wind Gust
?Protective cover with sure-grip overmolding
?Data hold function
?Large easy-to-read display
?Waterproof and floats
?Patented user-replaceable impeller
?Wide range of wind speeds and low startup speed
?Reliable, portable, and easy to use
?All instruments and accessories are completely assembled in the USA
Kestrel Meter 1000 Includes
?A slip-on protective cover
?Neck lanyard
?CR2032 coin cell battery (Average life 300 hours)
Kestrel Meter 1000 Additional Information
?Kestrel 1000 (PDF) Instruction Manual English
?Kestrel 1000 Archived (PDF) Instruction Manuals English | French | Spanish | German | Italian
? Kestrel Meters Detailed Specs / Certificate of Conformity (All Meters, PDF)
? Kestrel Meters Catalog (PDF)
?RoHS CERTIFICATE of Compliance
?Dimensions: 4.8 x 1.7 x 0.7 in. / 122 x 42 x 18 mm
?Weight: 2.3 Ounces / 65 Grams
?Model: Kestrel 1000 Part # 0810
?Place of Origin: USA
