EV6000手持式 LED 黑光燈

美國磁通EV6000黑光燈是一款便攜的、手持式黑光燈（紫外線燈），專為熒光滲透檢測和熒光磁粉檢測而設計。EV6000黑光燈采用高性能的LED燈珠和自主設計的透鏡，使其光照分布均勻，近距離照射無耀斑無盲區，在長時間照射下透鏡不發生霧化，確保高透光率，且照射范圍更大。在距燈38厘米處光束截面直徑可達23厘米，超出市場主流產品30%左右的照射范圍，可大大加快大型工件的檢測效率。

EV6000已經通過無損檢測LED黑光燈標準，航空航天Prime及OEM光譜與光束強度分布認證。每一臺設備發貨時都附帶符合或超過現有的熒光滲透和熒光磁粉探傷標準的制造商合格證。

美國磁通EV6000黑光燈產品優勢

縮短檢測時間

• 以目前市場上輻照面廣均勻的紫外光使檢測時間縮短

• 憑借高強度LED，即使在23厘米輻照面邊緣的缺陷也可清晰顯示

擴大檢測范圍

• 幾乎熒光滲透或磁粉檢測都可使用

• 可用放心來檢測包括航空部件在內的多種部件

• 符合包括ASTM E3022和RRES 90061在內的全部無損檢測標準

優異的可靠性

• 憑借可靠強化的結構，減少停工時間

• 全密封的外殼可以在多環境下使用，無風扇冷卻系統和防霧鏡片使檢測效果一貫的可靠

• 專注于無損檢測的設計和可靠的結構

舒適的工作環境

• 比鹵素?zé)糨p30%，使操作者工作更舒適

• EV6000的冷卻系統使檢測暗室溫度適宜

LED技術提供更安全的工作環境

• 冷光源LED技術使操作者不再有被燙傷的可能

• 不再需要處理有害的汞蒸氣, 更加安全

EV6000 Hand-Held LED UV Lamp

The EV6000 LED UV lamp is a portable, hand-held UV lamp for fluorescent non-destructive testing applications like fluorescent penetrant testing and fluorescent magnetic particle inspections.

The EV6000 features a uniform beam with no hot-spots and a 9 in / 23 cm wide beam, 33% wider than the next widest hand-held UV lamp in the industry.

Custom-designed optics provide intense and even UV-A coverage of UV-A to easily identify indications, and an integrated filter ensures minimal visible light emission to improve inspection reliability.

The EV6000 is certified to NDT standards for LED UV lamps and certified for Aerospace Prime and OEM specifications for emission spectrum and beam profile. Each unit is shipped with a manufacturer’s certificate of conformance which meets or exceeds all current specifications for use with fluorescent liquid penetrant and magnetic particle testing.

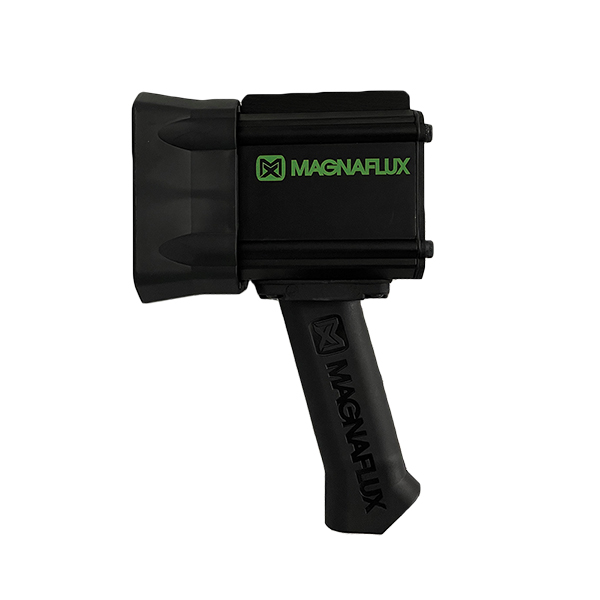

NOTE: Handheld UV lamps were temporarily manufactured with black handles from approximately July 2022 to mid-June 2023.

Benefits

Minimizes time to inspect parts

• Speeds up inspection time with one of the widest, most even beams on the market

• Indications are clearly visible even at the edge of the 9 inch / 23 cm beam, thanks to the high intensity LEDs

Maximize range of inspections

• Use for virtually any fluorescent penetrant or mag particle inspection

• Inspect a wide range of components, including aerospace parts, without worry

• Full NDT specification compliance, including ASTM E3022 and RRES 90061

Increases real-world reliability

• Reduces on-the-job downtime with dependable, reinforced construction

• Fully sealed IP65 rated housing will stand up to the elements, along with a fan-less cooling system and non-clouding lens for reliable, consistent inspections

Features

• 5,000 μW/cm2 maximum irradiance at 15 in / 38 cm

• 9 in / 23 cm wide, uniform circular beam

• Light weight at only 2 lb / 0.9 kg

• No hot-spots in the beam profile

• IP65 rated, rugged, durable design

• No internal fan

• Low energy consumption

• Aerospace prime and OEM certified

• Improved operator and environmental safety

• Certified to ASTM / RRES / NADCAP
