美國spectroline XL-1000紫外交聯儀spectroline UV crosslinker XL-1000

美國Spectronics公司的XL-1000紫外交聯儀是安裝5根短波254nm紫外線燈管的短波紫外交聯儀，設計實用，用途廣泛。采用智能微處理控制系統和實時紫外監測系統?？梢愿?、更的安全地得到可靠無誤的結果，減少無須的調整時間，不必要的重復過程和不期望的樣品污染。美國spectro-UV公司的XL-1000紫外交聯儀是使這些創新性儀器成為客戶需要的設備。

美國spectroline XL-1000紫外交聯儀的特點：

?30秒內快速固著核酸樣—速度是真空爐烘焙的240倍!
?保護您的珍貴測試結果免沖失—獨特的真正紫外監示電路可以確保紫外劑量和設定的一樣。
?確保zui優膜固著--在整個燈管壽命內！
?"Smart" 微處理控制器提供輕松操作—  自動重復, "幫助"  提示及四種操作模式(包括zui優交聯),保證結果無誤。
?功能多樣-適合于多種應用。
?比傳統方法大大提高增強雜交信號
?每次得出印刷質量一樣的結果
?自動重復“記憶”上次設置--快速、簡單，只需按一鍵即可
?無與倫比的精度先進的傳感器提供真實紫外監控。

Spectrolinker XL-1000及XL-1500系列UV交聯儀的應用

?Elimination of PCRcontamination
?消除PCR污染
?Crosslinkingof DNA and RNA by covalently binding nucleic acids to nylonor nitrocellulose membranes after Northern, Southern, slot or dotblotting and colony or plaque lifts
?在Northern,Southern,Slot或Dot印跡和克隆或噬菌斑搭車后通過將核酸共價結合到尼龍膜和硝基纖維膜上而使DNA和RNA發生交聯。
?Nicking ethidium-bromide-stainedDNA in agarose gels
?切下瓊脂糖凝膠上EB染色的DNA。
?Gene mapping for creatingcleavage-inhibiting thymine dimers
?產生切割抑制的胸腺嘧啶二聚體而進行基因作圖。
?RecA mutation screeningin E. coli
?大腸桿菌中RecA突變篩選。
?UV sterilization
?紫外滅菌
?UV-intensity monitoring
?紫外強度監測
?Miscellaneous UV-dosageapplications including UV-induced polymerization or drying
?多種紫外劑量應用包括紫外誘導聚合反應或干燥。


美國Spectronics公司的交聯儀設計實用，用途廣泛。采用“聰明的”微處理控制系統和獨特的真實紫外監測回路。可以更快、更的安全地得到可靠無誤的結果，減少無須的調整時間，不必要的重復過程和不期望的樣品污染。我們的zui終目的是使這些創新性儀器成為您zui需要的設備。

紫外交聯儀強大的功能包括:

四種操作模式
·自動優化交聯(預設劑量120mJ/cm2
·紫外能量 (0-999,990 μJ/cm2)
·時間 (0 秒-2? 小時)
·紫外強度數字顯示

內置 "幫助" 信息及LED顯示，提示操作：
·您所選的設定
·剩余時間/能量
·當紫外燈管需要更換時
·當門打開時
·時間結束

美國spectroline XL-1000紫外交聯儀的技術參數：

如果您不會操作spectroline XL-1000、XL-1500紫外交聯儀，或者紫外交聯儀出現故障需要解決，需要購買紫外交聯儀的紫外線燈管，需要美國spectroline XL-1000紫外交聯儀的操作說明書，請?zhí)砑游⑿?3120936518咨詢。

美國spectroline XL-1000紫外交聯儀的英文介紹：

SPEECROLINE UV CROSSLINKERS XL-1500 Spectrolinker

DESIGNED TO MONITOR UV RADIATION AND SELF-ADJUST TO VARIATIONS IN UV INTENSITY, ALL SPECTRO-UV UV CROSSLINKERS FEATURE A “SMART” MICROPROCESSOR CONTROLLER AND UNIQUE TRUE UV MONITORING CIRCUITRY TO ENABLE USERS TO GET ERROR FREE RESULTS WITH SPEED, ACCURACY AND SAFETY.

The Spectrolinker? series was developed to be one of the most advanced, versatile and accurate UV crosslinkers and is a now worldwide best-seller.

Currently not available in CE rated housings; not for sale in the European Union.


Description

Covalently binds nucleic acid sequences and hybridization membranes in 30 seconds or less

Safeguards your valuable test results from washouts

Ensures optimum nucleic acid membrane binding, even when UV output varies

Provides ultimate ease of use and accuracy with “Smart” microprocessor controller

Protects users from UV exposure with fully enclosed chamber

SPECTROLINKER? SERIES

Rugged, anodized aluminum housing

Long lasting anodized aluminum chamber prevents rusting

Available in SW, MW and LW wavelengths

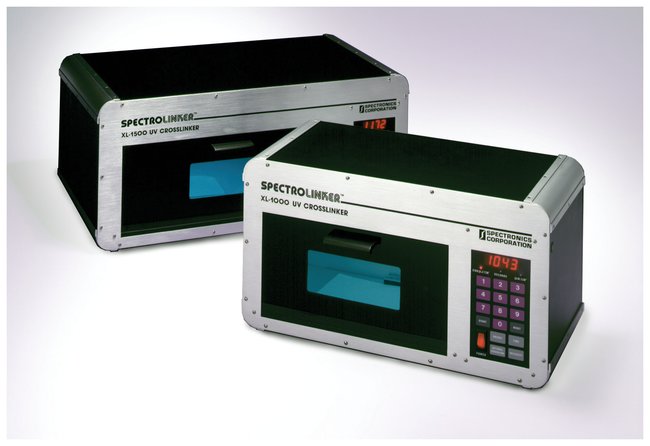

Available in Two Sizes: Standard XL-1000 Series, and Large XL-1500 Series

The 254nm versions of the Spectrolinker? UV crosslinkers provide super-fast DNA and RNA crosslinking to membranes for improved hybridization-signal sensitivity. At peak, these units can process samples in under 30 seconds — that’s 240 times faster than vacuum-oven baking! Our exclusive, wavelength-specific, multi-stack UV photo sensor, which is factory-calibrated to NIST standards, provides precise UV-only dosage measurements. Full range display resolution is accurate to 5μW/cm2 EMI/RFI protection. All models from both series offer exceptional accuracy and precision irradiation, even compensating for aging UV tubes when output diminishes over time.

PROGRAMMABLE “SMART” MICROPROCESSOR CONTROLLER

crosslinker_keypadLED-function indicators and color-coded keypad

Built-in “help” messages

Four operation modes

Auto Repeat function remembers last operation without reprogramming

FOUR OPERATION MODES —

Optimal Crosslink mode automatically provides a preset UV energy dosage of 120 mJ/cm2

Energy-set mode (0-999,990 μJ/cm2) allows for variable amounts of UV energy to be programmed

Time mode (0-9,900 seconds), allows for variable time settings to be established

Intensity mode shows steady-state UV intensity output

Note: All units have an irradiance display resolution of ±5μW/cm2 over the entire range.

BUILT-IN “HELP” MESSAGES —

Bulb: When the UV tubes need to be replaced

Door open: the unit also protects users from accidental UV radiation when the door is opened during a run

End: End of cycle confirmed by display and audible beep

Remaining Time/Energy provides operation status report

When the operation has been interrupted. The RESET button cancels the latest settings and START button automatically resumes the current operation.

STANDARD SIZE PRODUCT DETAILS

Spectrolinker? XL-1000 Series

Overall housing dimensions (W x H x D): 19.5″ x 10.5″ x 9″, 49.5 x 26.7 x 22.9cm

Effective inner chamber dimensions (W x H x D): 13.5″ x 7.0″ x 7.5″, 34.3 x 17.8 x 19.1cm

Door dimensions (W x H): 12.0″ x 6.25″, 30.5 x 15.9cm

Viewing window dimensions (W x H): 6.0″ x 2.5″, 15.2 x 6.4cm for XL-series, 6.0″ x 3.0″, 15.2 x 7.6cm for XLE-series

Net weight: 17.5 lb, 7.9kg

Power: 120V-60Hz-2A, 230V-50Hz-2A, 100V-50/60Hz-2A

LARGE SIZE

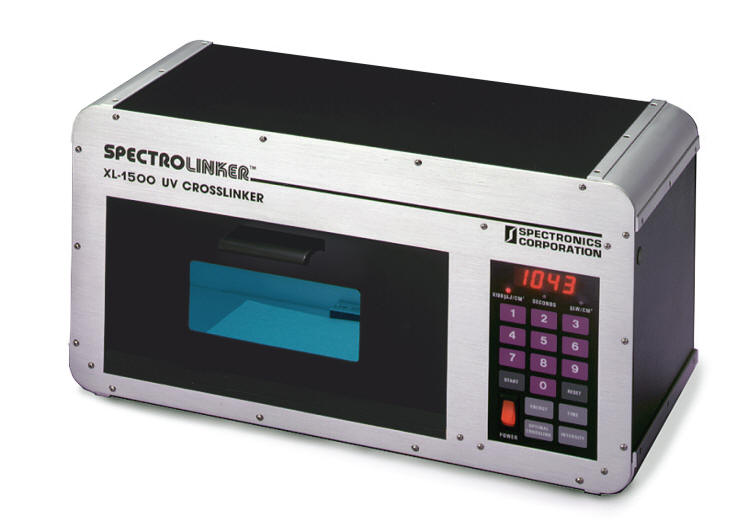

Spectrolinker? XL-1500 Series only

Overall housing dimensions (W x H x D): 24.0″ x 10.5″ x 14″, 61.0 x 26.7 x 35.6cm

Effective inner chamber dimensions (W x H x D): 18.25″ x 6.25″ x 12.5″, 46.4 x 15.9 x 31.8cm

Door dimensions (W x H): 16.0″ x 6.25″, 40.6 x 15.9cm

Viewing window dimensions (W x H): 6.0″ x 2.5″, 15.2 x 6.4cm

Net weight: 26 lb, 11.8kg

Power: 120V-60Hz-3A, 230V-50Hz-3A, 100V-50/60Hz-3A
