美國SPECTROLINE SPN-VIN365手持式LED紫外燈Vintage-365

人體工學，配合LED技術
寬光束等效HID紫外燈
無需風扇 冷卻運行
型號：SPN-VIN365
標稱穩定紫外線強度38cm處約：5500uw/cm2
白光泄漏38cm處小于：11Lux
UVA輻射面積＞1200uw/cm2直徑約：20cm
光源：2顆UV-A LED
燈具類型：手持握把式
燈長：18*12.7*24.1cm
燈重：0.95Kg
電源： AC 220-240V
隨貨提供光譜輸出證書

UV-A intensity reading taken with the Spectroline AccuMAX Serise meter,and are faceory set to the values shown。

SPN-VIN365手持式LED紫外燈替代以下型號紫外燈：FC-100、SB-100、FC-150、BIB-150

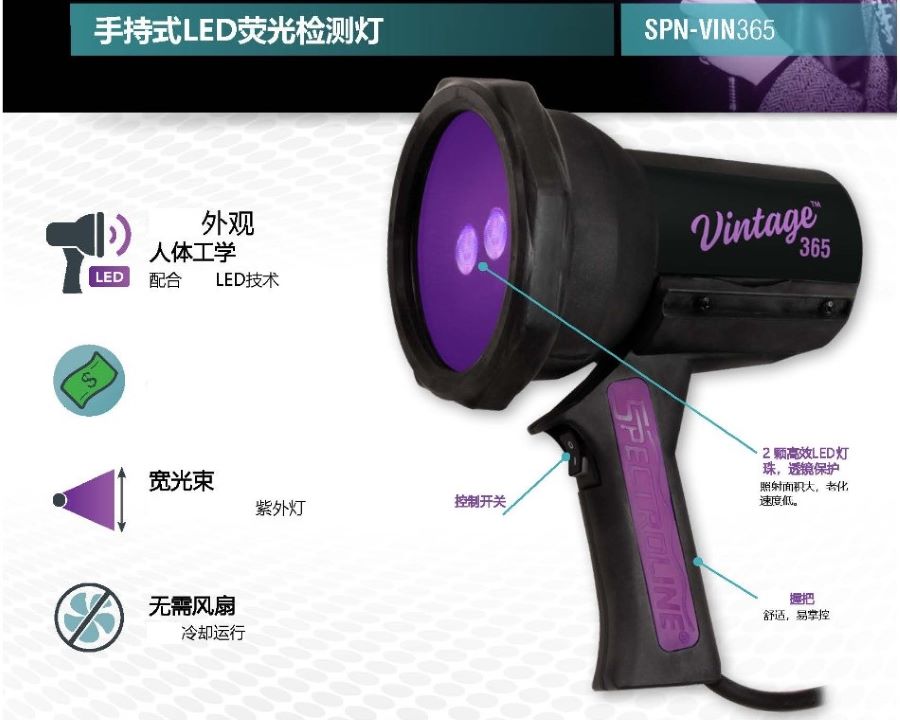

SPN-VIN365手持式LED紫外燈功能說明

以上紫外數據由美國SPECTROLINE公司的XRP-3000黑白兩用照度計測試的數據。

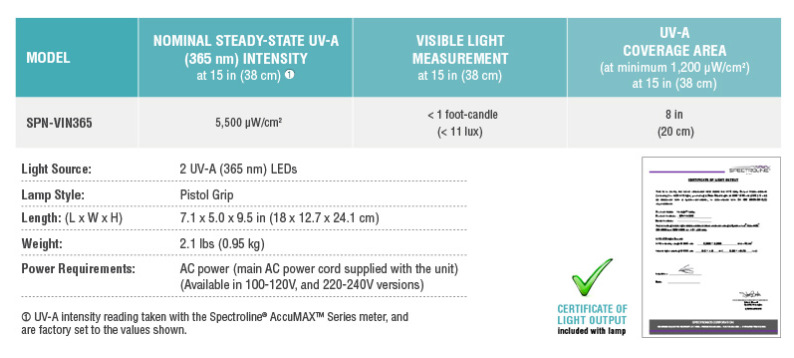

SPN-VIN365手持式LED紫外燈技術參數

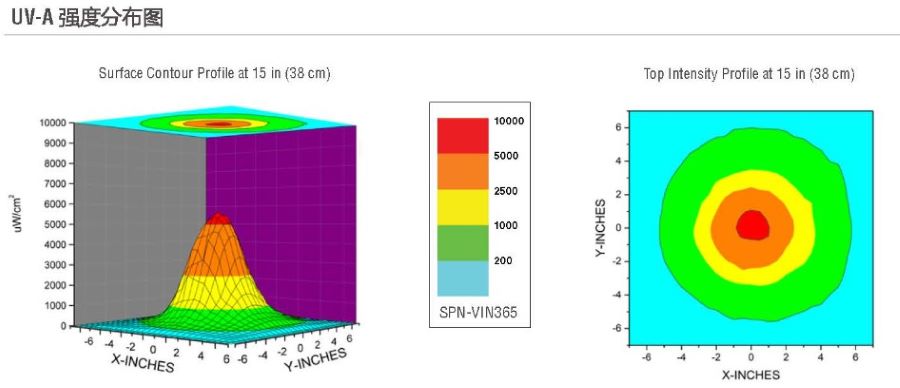

SPN-VIN365手持式LED紫外燈的光強度分布圖

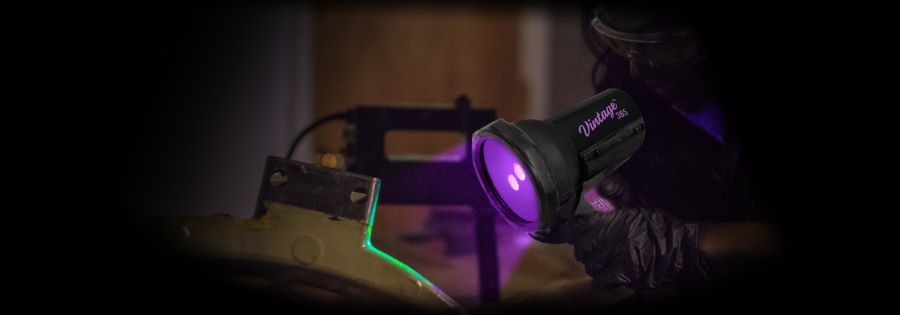

SPN-VIN365手持式LED紫外燈用于無損檢測

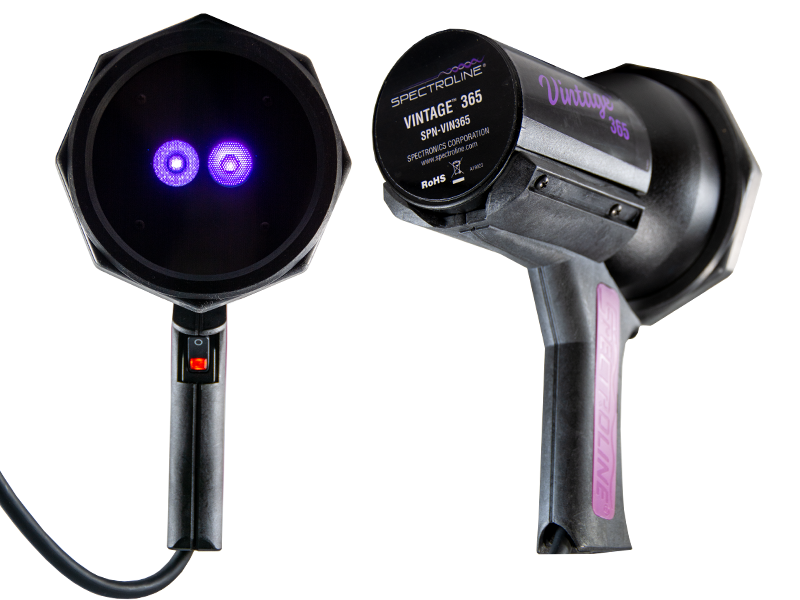

Spectro-UV Vintage 365（spn-vin365） Handheld LED UV Lamp

Classic Design. Modern Technology. Economic Price.

Classic Design, Modern Technology

The Vintage 365 is a handheld LED UV-A inspection lamp for NDT with a vintage, ergonomic design but modern LED technology. This quality lamp is at an economic price and features a wide beam profile that has a light output equivalent to classic HID lamps. With a fanless design, this cool running lamp is efficient and reliable.Note that the Vintage 365 is a non-spec UV lamp for industrial use only - not certified to ASTM-E-3022 or RRES 90061

spn-vin365 Handheld LED UV Lamp Features

Nominal steady state intensity of 5,500 μW/cm2 at 15 in

Less than 1 fc of visible light emission

Wide beam diameter of 6 in (15.2 cm) of at least 1,200 μW/cm2 at 15 in

Meets ISO 3059 specifications

Certificate of Light Output included

Lightweight – 2.1 lbs (0.95 kg)

Long-lasting UV-A lenses

Ergonomic handle, durable housing

Cool running, fanless design

Consistent beam profile

Reliable performance
