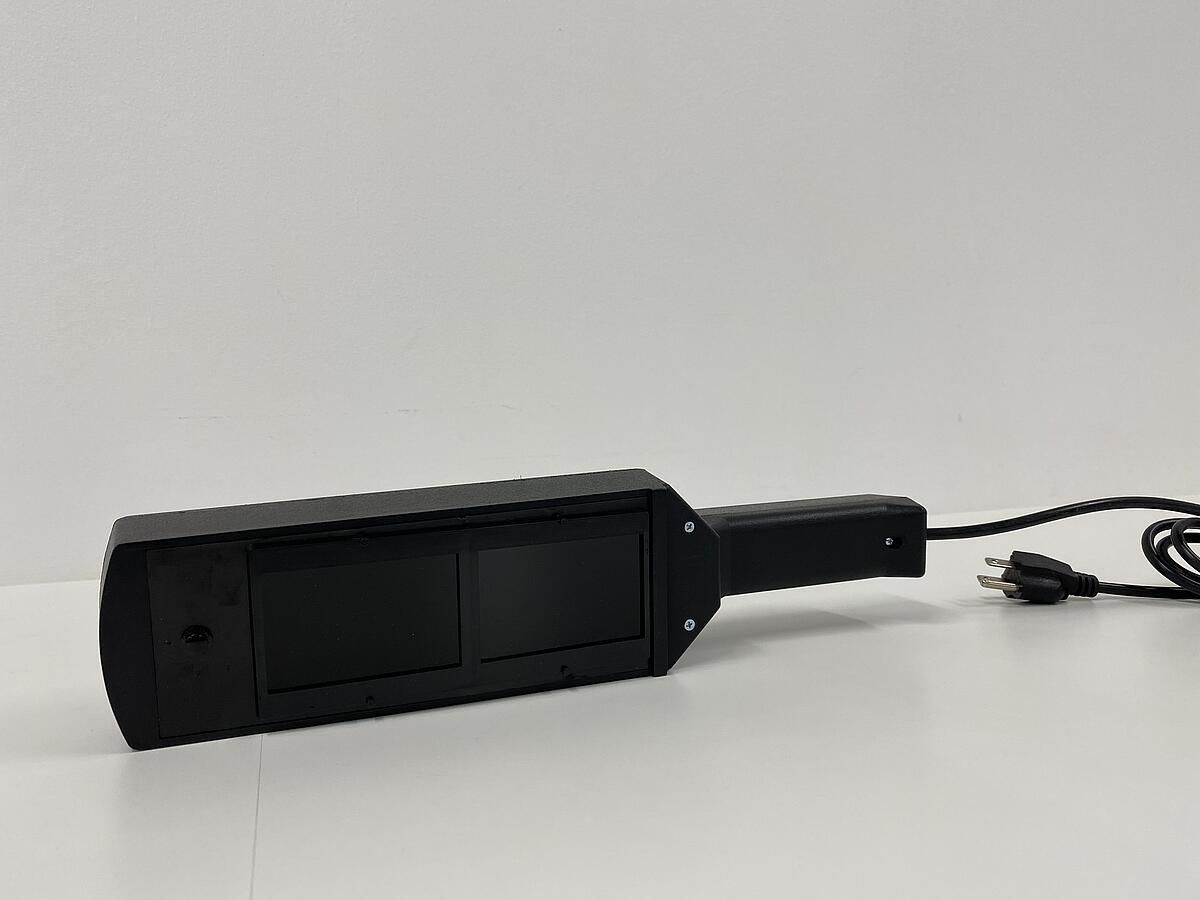

Analytik Jena UVGL-55手提式雙波長紫外線燈為6瓦，長波365nm和短波254nm的雙波長組合。
紫外強度：μW/cm2 @ 3"...
LW 365nm: 950
SW 254nm: 1290

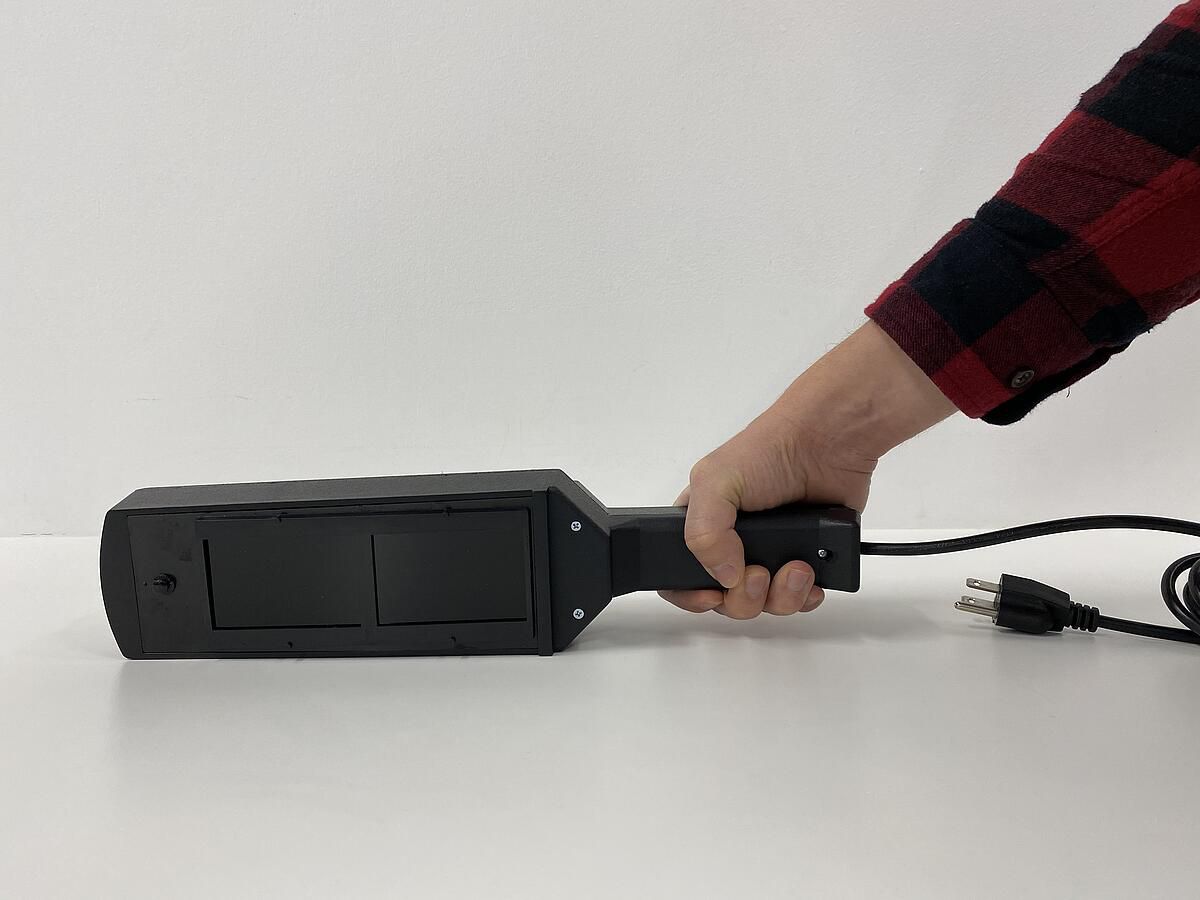

手提式紫外燈的設計，符合人體工程學設計的手柄，操作便攜。手提紫外燈可提供長波、中波、短波或者長波和短波的雙波長組合。
雙波長紫外線燈UVGL-55主要特點
?功率為6W
?重量輕，有利于手提操作
?堅固耐用的塑料外殼
?可選擇短波紫外線，長波紫外線或短波和長波的雙波長紫外組合。
?長波和短波的雙波長模式具有開關可實現波長之間的輕松轉換。
?符合人體工程學設計的手柄。輕量級的手提燈，方便滿足各種測試需求操作。
UVGL-55雙波長紫外線燈技術規格
| 功率 | 6W |
| 波長 | 雙波長；長波365nm短波254nm |
| 外殼材質 | 塑料外殼 |
| 燈尺寸 | 378×81×64mm |
| J-129支架 | 247x330mm |
| J-130支架 | 330X270X80m |
型號選擇
| 型號 | 貨號 | 功率/波長 | 可替換燈管 |
| UVG-54 | 95-0004-10 | 6W，254nm，手提短波紫外線燈 | 34-0013-01 |
| UVGL-55 | 95-0005-06 | 6W，2UV，365nm/254nm，雙波長紫外燈*Multi-band split tube lamp | 34-0034-01 365nm34-0013-01 302nm |
| UVGL-58 | 95-0007-06 | 6W，2UV,254nm/365nm，手提雙波長紫外燈 | 34-0034-01 365nm 34-0013-01 254nm |
| UVL-56 | 95-0006-03 | 6W, 365nm，手提長波紫外燈 | 34-0034-01 |
| UVM-57 | 95-0104-02 | 6W，302nm，手提中波紫外線燈 | 34-0044-01 |
選購配件
| 迷你紫外觀察箱 | 95-0072-01 | C-10 |
| 紫外防護眼鏡 | 98-0002-06 | UVC-305 |
| 紫外防護面罩 | 98-0002-04 | UVC-803 |
| 紫外燈管 | 34-0013-01 | 6W，254nm |
| 紫外燈管 | 34-0034-01 | 6W，365nm |
| 紫外燈管 | 34-0044-01 | 6W，302nm |
| J-129 | 98-0016-03 | Lamp Stand，燈架 |
| J-130 | 98-0017-03 | 燈支架 |
UVP Handheld UV Lamps
Lamps are lightweight for easy handling
Durable plastic housing
Six watt tubes
Models available with shortwave (254 nm), midrange (302 nm), longwave (365 nm) UV or a combination shortwave/longwave (254/365 nm) version
Combination shortwave/longwave version comes with a snap-on wavelength selector for switching between wavelengths
Product Details
Lamps are lightweight for easy handling
Handheld UV Lamps (6 watts) are uniquely designed with an ergonomically designed handle. Select from longwave, midrange, shortwave or combination longwave and shortwave in the same lamp.
Applications include:
Photochemistry/Phosphorescence
Inspection
Laboratory
General Chemical Laboratory
*Product performance and effectiveness will depend on the user.*
Technical Data
| Housing | Plastic |
| UV | Select from models with 254 nm, 302 nm, 365 nm UV or combination 254/365 nm |
| Watts | Six |
| Lamp Dimensions | 14.9L x 3.2W x 2.5H in. (378 x 81 x 64 mm) |
| Lamp Stand Dimensions | 10.74H x 13L x 3W in. (273 x 330 x 76 mm) |
Order Information
| 115 V | 230 V | Model | Description 6 Watt Lamps | Filter |
| 95-0004-09 | 95-0004-10 | UVG-54 | Handheld UV Lamp, 254 nm | 98-0004-03 |
| 95-0005-05 | 95-0005-06 | UVGL-55 | Handheld UV Lamp, 254/365 nm | 98-0005-03 |
| 95-0007-05 | 95-0007-06 | UVGL-58 | Handheld UV Lamp, 254/365 nm | 98-0004-03 |
| 95-0006-02 | 95-0006-03 | UVL-56 | Handheld UV Lamp, 365 nm | 98-0006-03 |
| 95-0104-01 | 95-0104-02 | UVM-57 | Handheld UV Lamp, 302 nm | 98-0004-03 |
Replacement Parts / Accessories
| 98-0016-03 | J-129 | Lamp Stand |
| 34-0013-01 | Replacement Tube | 6 Watt, 254 nm |
| 34-0015-01 | Replacement Tube | 6 Watt, 254/365 nm (split tube) |
| 34-0034-01 | Replacement Tube | 6 Watt, 365 nm |
| 34-0044-01 | Replacement Tube | 6 Watt, 302 nm |
關于Analytik Jena US公司：
耶拿美國分析公司，前身為UVP，為多種應用設計和制造紫外線產品解決方案。2013年，UVP被位于德國耶拿的耶拿分析股份公司（現為耶拿分析有限公司）收購。UVP公司更名為耶拿美國有限責任公司，并作為耶拿分析師生命科學業務部門的一部分運營。
紫外線產品包括紫外線燈、紫外線透射儀、紫外線柜、紫外線交聯劑和紫外線強度計。耶拿美國Analytik，前身為UVP，為犯罪學、電泳、薄層色譜、滅菌、衛生、毒理學、檢測、無損檢測和紫外線固化等應用設計和制造紫外線產品解決方案。
實驗室產品是耶拿美國分析公司在科學市場設備設計、開發和制造方面的領先地位的直接產物。在電泳、印跡、雜交和蛋白質組學領域，正在創造和生產密切相關的技術和應用。光源根據特定要求設計定制紫外線光源。該集團生產用于分析和工業應用的低壓，汞，鋅和稀有氣體，紫外線筆燈。
耶拿美國公司的制造工廠位于加利福尼亞州的厄普蘭。耶拿美國公司擁有100多名員工的銷售、營銷、研發和制造人員，為全球客戶和經銷商提供全面的服務和支持。
Analytik Jena US, formerly UVP, designs and manufactures ultraviolet product solutions for multiple applications. In 2013, UVP was acquired by Analytik Jena AG (now Analytik Jena GmbH) which is based in Jena, Germany. The UVP Company name was changed to Analytik Jena US LLC, and operates as part of Analytik Jena's Life Science Business Unit.
Ultraviolet Products includes UV lamps, UV transilluminators, UV cabinets, UV crosslinkers and UV intensity meters. Analytik Jena US, formerly UVP, designs and manufactures ultraviolet product solutions for applications including criminology, electrophoresis, thin-layer chromatography, sterilization, sanitation, toxicology, inspection, non-destructive testing and UV curing.
Laboratory Products
Laboratory Products is a direct outgrowth of Analytik Jena US's leading position in the design, development and manufacture of equipment for the scientific marketplace. Closely related technology and applications are being created and produced in the areas of electrophoresis, blotting, hybridization and proteomics.
Light Source Designs
The Light Source designs custom ultraviolet light sources to specific requirements. The group manufactures low-pressure, mercury, zinc and rare gas, ultraviolet Pen-Ray Lamps for analytical and industrial applications.
Analytik Jena US's manufacturing facility is located in Upland, California. With sales, marketing, R&D and manufacturing personnel of over 100 employees, Analytik Jena US provides comprehensive service and support to customers and dealers worldwide.
